Brushless DC (BLDC) motors have become the gold standard in modern power tools, offering superior efficiency, power density, and longevity compared to brushed motors. Their design is critical in applications like drills, angle grinders, circular saws, and impact drivers, where high torque, compact size, and thermal stability are essential. This article explores key aspects of BLDC motor design for power tools, including electromagnetic optimization, thermal management, control strategies, and industry trends.

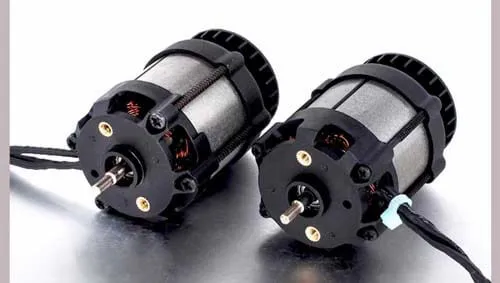

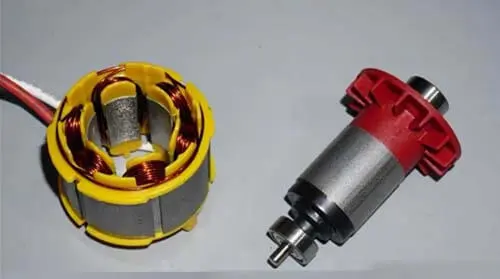

• Stator: Typically uses laminated silicon steel with concentrated or distributed windings.
♦ Pole count: 4–8 poles (higher poles = smoother torque but lower max RPM).
♦ Slot-pole combinations (e.g., 12-slot/10-pole for reduced cogging).
• Rotor: Permanent magnet (NdFeB or SmCo for high energy density).
♦ Surface-mounted magnets (easier manufacturing, lower cost).
♦ Interior permanent magnet (IPM) (better mechanical robustness).
• Trapezoidal vs. Sinusoidal Commutation
♦ Trapezoidal: Simpler control (6-step commutation), common in budget tools.
♦ Sinusoidal (FOC): Smother operation, less vibration, better efficiency (used in premium tools).
• Litz Wire vs. Solid Wire
♦ Litz wire reduces high-frequency losses in high-RPM tools.
• Smaller gap → higher torque density but tighter tolerances required.
• Typical range: 0.3–0.8 mm (depends on manufacturing precision).
|

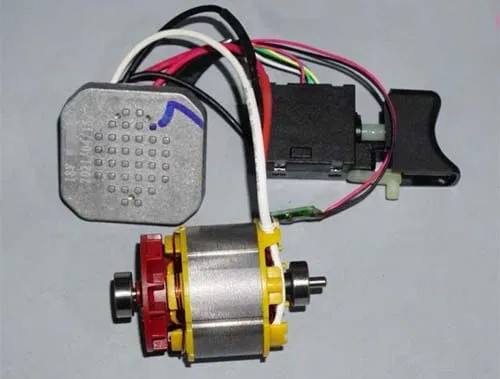

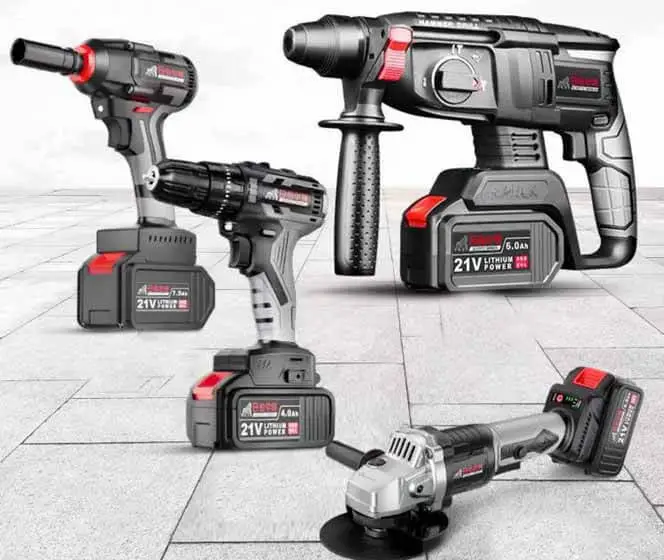

Tool Type |
Typical Power (W) |
Peak Torque (Nm) |
RPM Range |
|
Cordless Drill |
300–800W |
5–20 Nm |
0–2,000 RPM |
|
Angle Grinder |
500–1,500W |
3–10 Nm |
8,000–12,000 RPM |
|
Circular Saw |
800–2,000W |
15–40 Nm |
3,000–6,000 RPM |
|
Impact Driver |
200–600W |
100–200 Nm (pulse) |
0–3,000 RPM |
High torque at low speeds (e.g., for drilling) requires careful flux weakening control.
High-speed tools (e.g., grinders) need careful balancing to avoid vibration.
• Major heat sources: Copper losses (I²R), core losses (hysteresis & eddy currents), friction.
• Cooling strategies:
♦ Forced air cooling (fan-integrated rotor).
♦ Heat sinks on stator housing.
♦ Thermal sensors (NTC/PTC) for overload protection.
♦ High-temp magnets (e.g., SmCo for >150°C environments).

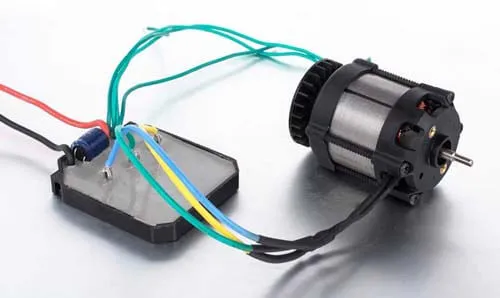

• Sensorless vs. Sensored Control
♦ Sensorless: Cheaper, uses back-EMF (common in mid-range tools).
♦ Sensored (Hall effect/encoder): Better low-speed control (used in high-end tools).
• Field-Oriented Control (FOC)
♦ Maximizes efficiency, reduces noise/vibration.
♦ Requires high-speed MCU (STM32, Infineon XMC).
• Battery Considerations (for Cordless Tools)
♦ 18V–60V Li-ion packs.
♦ Dynamic current limiting to prevent voltage sag.

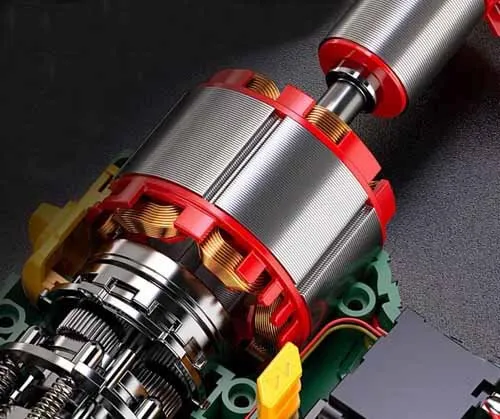

• Gearbox Matching
♦ Planetary gears for high torque (e.g., impact drivers).
♦ Spur gears for compactness (e.g., angle grinders).
• Vibration & Noise Reduction
♦ Dynamic rotor balancing.
♦ Rubber isolation mounts.
• Dust & Moisture Protection
♦ IP54 or higher for construction tools.
♦ Sealed bearings.
⇒ Higher Power Density
► SiC/GaN inverters for smaller, more efficient drives.
⇒ Smart Motor Diagnostics
► IoT-enabled tools with predictive maintenance.
⇒ Regenerative Braking
► Recovers energy in deceleration (used in advanced cordless tools).
⇒ 3D-Printed Motor Components
► Lightweight, complex geometries for better cooling.
BLDC motor design for power tools requires a careful balance of electromagnetic performance, thermal management, and mechanical robustness. Advances in materials, control algorithms, and power electronics continue to push the limits of efficiency and durability. As cordless tools dominate the market, optimizing for battery life and heat dissipation remains a key challenge.
Looking for a custom BLDC motor solution for your power tool? Consult a motor design specialist to tailor performance to your application!
