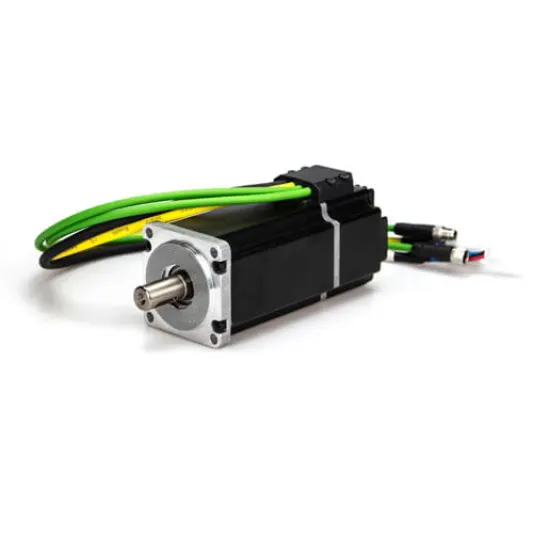

48V Integrated Servo Motor

IDV80 series servo motor belong to low voltage permanent magnet dc servo motor series. 80mm flange size. 750W, 1000W option on stock. Voltage option: 36V/48V/72V. Rated torque can be 2.4Nm on 48V and 3.2Nm on 72V. Integrated driver design. More simple connection with PLC and other controller. Small size but big torque. Ideal for AGV, smart robot and other industrial automation application which need compact size servo motor.

Features:

1. Low voltage from 24V-48V
2. 5V double terminal pulse/direct command input
3. The max pulse frequency of the control command is 500KHz
4. With over-current, over-voltage, over-load protection
5. Built-in position command smoothing filter function
6. Using FOC magnetic field position technology and SVPWM technology
7. Built-in 17 bit high resolution magnetic encoder
8. With a variety of position/speed/torque command application modes
9. Configurable function of 3 digital input interfaces, 1 digital output interface
10.  Support with CANopen and EtherCAT

Typical model data

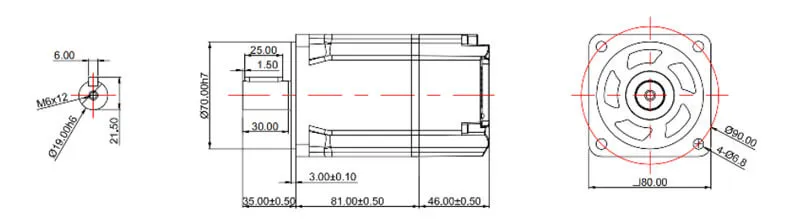

Size Drawing:
