Product Description

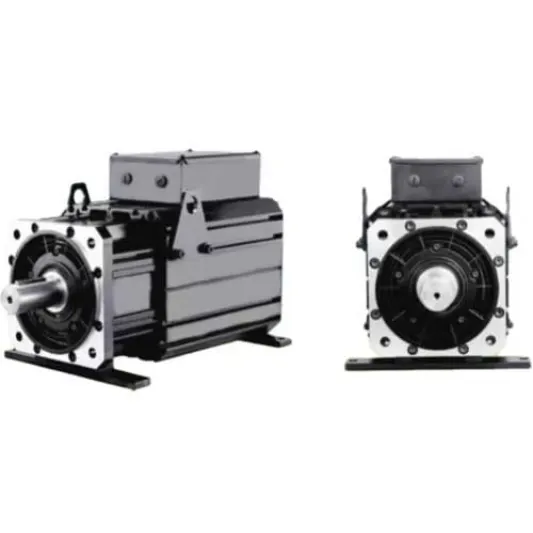

SM200 series servo motor designed with flange size 200*200mm. They can offer rate torque from 45Nm to 150Nm. They can be used to drive industrial pump directly for the injection molding machine. The power range selection: 7KW/14KW/21KW/28KW/31KW. The motor length, encoder, brake, cooling method can be option for different request.
Features:
Voltage： 220V/380V/480V
Rate Power: 7-31KW
Rated speed：1500-2000 RPM
Rated torque：45-150N.M
Work temperature: -10-55℃
Insulation Class: H
Typical model data
|
Motor model |
Rated power (KW) |
Rated current (A) |
Rated voltage (V) |
Rated torque (N.m) |
Max torque (N.m) |
Rated Speed (RPM) |
Max Speed (RPM) |
Rotor Inertial (kg·m².10-3) |
|
SM200-01 |
7 |
13.2 |
380 AC |
45 |
135 |
1500 |
2500 |
6 |
|
SM200-02 |
14 |
26.3 |
380 AC |
90 |
270 |
1500 |
2500 |
9 |
|
SM200-03 |
21 |
40.5 |
380 AC |
135 |
405 |
1500 |
2500 |
12 |
|
SM200-04 |
28 |
55.2 |
380 AC |
135 |
405 |
2000 |
3000 |
12 |
|
SM200-05 |
31 |
61.5 |
380 AC |
150 |
450 |
2000 |
3000 |
13.5 |

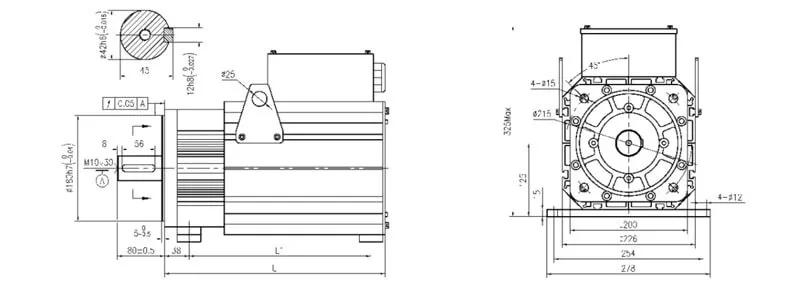

Size Drawing:
