Product Description
Features:
Voltage： 220V
No.s of Poles：8
No.s of encoder lines：2500PPR
Rated speed：3000 RPM
Rated torque：0.637-1.91N.M
Work temperature: -10-55℃
Insulation Class: H
Typical model data
|
Motor model |
Rated power (W) |
Rated current (A) |
Rated voltage (V) |
Rated torque (N.m) |
Max torque (N.m) |
Rated Speed (RPM) |
Max Speed
(RPM) |
Rotor Inertial (Kg.cm2) |
Weight
(KG) |
|
SM60-01 |
200 |
1.5 |
220 |
0.637 |
1.9 |
3000 |
7800 |
0.17*10-4 |
1.3 |
|
SM60-02 |
400 |
2.8 |
220 |
1.27 |
3.8 |
3000 |
7800 |
0.3*10-4 |
1.52 |
|
SM60-03 |
600 |
3.5 |
220 |
1.91 |
5.7 |
3000 |
7800 |
0.43*10-4 |
2.1 |

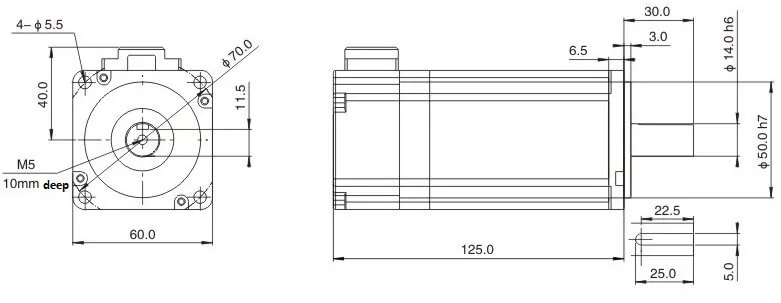

Size Drawing:
