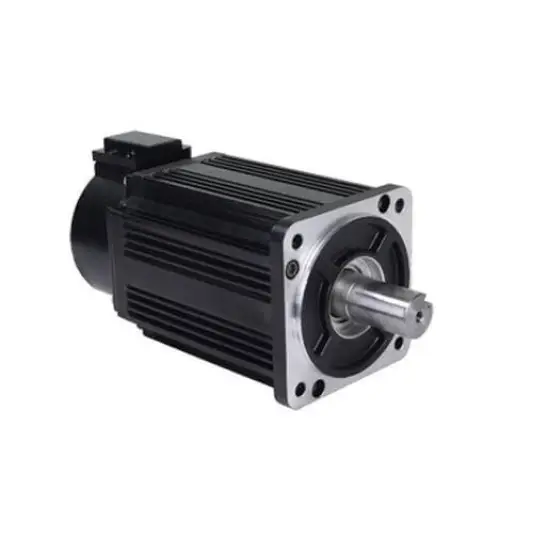

Product Description
Features:
Voltage： 220V
No.s of Poles：8
No.s of encoder lines：2500PPR
Rated speed：3000 RPM
Rated torque：1.27-2.4N.M
Work temperature: -10-55℃
Insulation Class: H
Typical model data
|
Motor model |
Rated power (W) |
Rated current (A) |
Rated voltage (V) |
Rated torque (N.m) |
Max torque (N.m) |
Rated Speed (RPM) |
Max Speed
(RPM) |
Rotor Inertial (Kg.cm2) |
Weight
(KG) |
|
SM80-01 |
400 |
2 |
220 |
1.27 |
3.8 |
3000 |
5500 |
1.05*10-4 |
1.78 |
|
SM80-02 |
750 |
3 |
220 |
2.39 |
7.1 |
3000 |
4500 |
2.45*10-4 |
2.9 |
|
SM80-03 |
1000 |
4.4 |
220 |
4 |
12 |
2500 |
3900 |
2.97*10-4 |
3.8 |

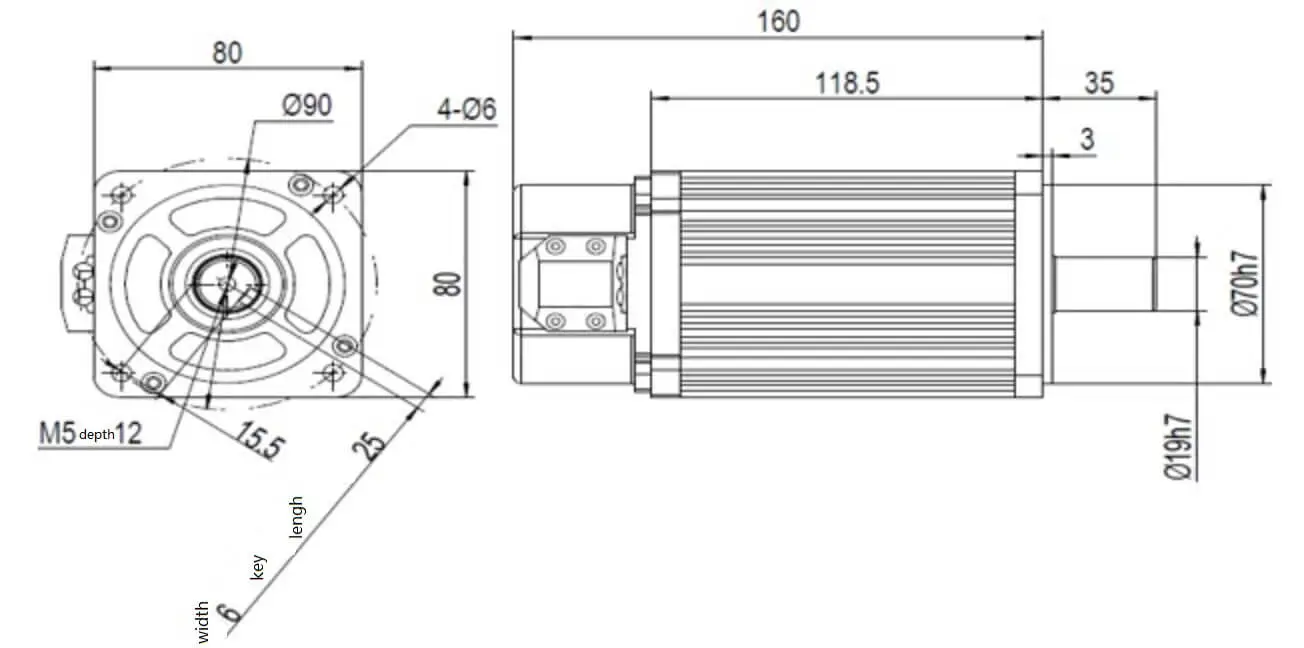

Size Drawing:
