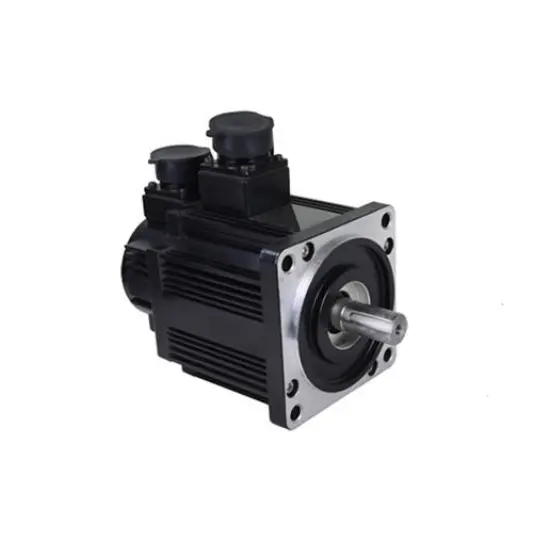

Product Description
Featrues:
Voltage： 220V
No.s of Poles：8
No.s of encoder lines：2500PPR
Rated speed：3000 RPM
Rated torque：1.91-3.82N.M
Work temperature: -10-55℃
Insulation Class: H
Typical model data
|
Motor model |
Rated power (W) |
Rated current (A) |
Rated voltage (V) |
Rated torque (N.m) |
Max torque (N.m) |
Rated Speed (RPM) |
Max Speed
(RPM) |
Rotor Inertial (Kg.cm2) |
Weight
(KG) |
|
SM110-01 |
600 |
2.5 |
220 |
2 |
6 |
3000 |
3900 |
0.32*10-3 |
4.9 |
|
SM110-02 |
800 |
3.5 |
220 |
4 |
12 |
2000 |
2700 |
0.54*10-3 |
6 |
|
SM110-03 |
1000 |
4.5 |
220 |
5 |
10 |
2000 |
2500 |
0.65*10-3 |
7 |
|
SM110-04 |
1200 |
5 |
220 |
4 |
12 |
3000 |
4000 |
0.56*10-3 |
6.5 |

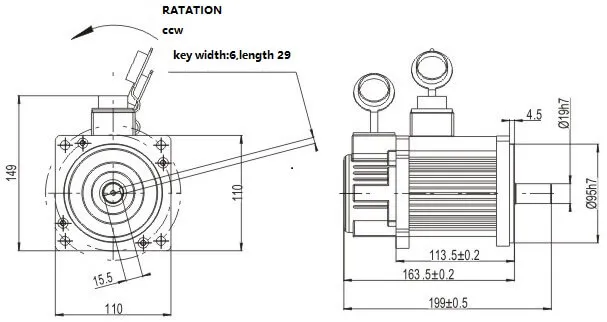

Size Drawing:
