Product Description
GM77 gear motors designed with high quality bronze worm gears and steel tooth shaft . High precision gears suited for long time working with smooth running and maintenance free. The series are mainly designed for noodle maker, juice extractor, high torque meat grinder. It can also be used for the other specify application such as automatic golf cart motion. The motor can be 12V, 24V or 36V PMDC motor and BLDC motor option. It can also be universal motor option operated with 120V 60Hz and 220V 50Hz.
Performance data:
Vol: 12-36V DC or 120V/60Hz, 220V 50 Hz
Working Current: 0.38A
Power: 130W-200W
Rated Speed: 45-65RPM
Input Power: 659W
Rated Torque: 2.27 NM
Insulation Class: A B F H
Typical model performance
|
Model |
Power Supply |
No Load |
At Max .Efficiency |
At Max. Qutput Power |
||||||||
|
Voltage |
Freq.’s |
Speed |
Current |
EFF |
Speed |
Torque |
Current |
P(in) |
Speed |
Torque |
Current |
|
|
VAC |
HZ |
RPM |
A |
% |
RPM |
Nm |
A |
W |
RPM |
Nm |
A |
|
|
GM77 |
120 |
60 |
85 |
0.38 |
82 |
68 |
0.4 |
2.27 |
659 |
65 |
1.5 |
4 |
|
GM77 |
220 |
50 |
95 |
0.22 |
64 |
82 |
0.1 |
0.25 |
265 |
60 |
0.9 |
3 |

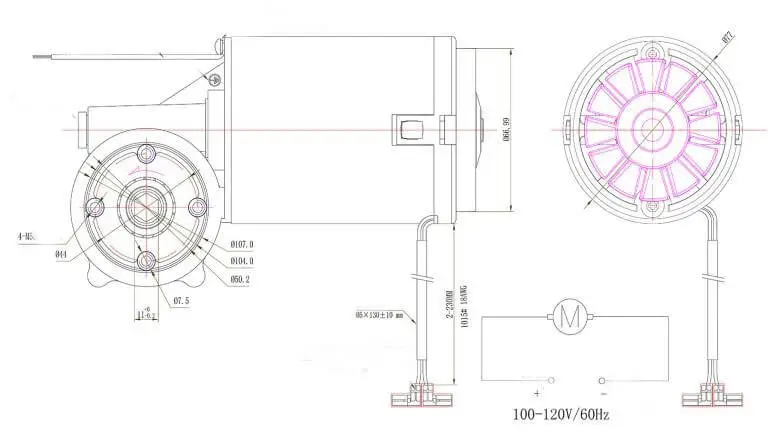

Size Drawing:
