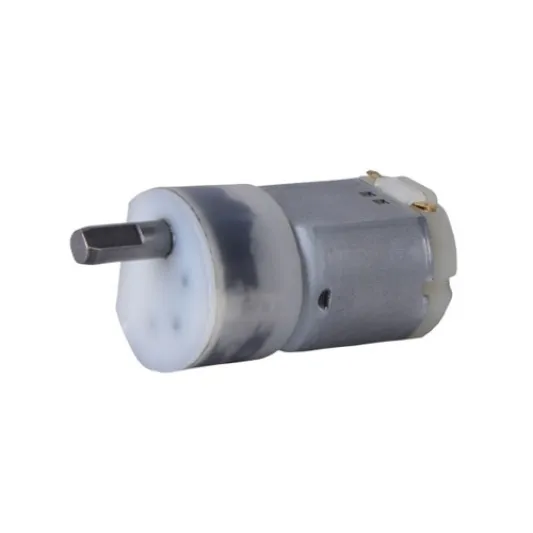

GM24 Gear Motor

GM24 dc brush gear motors designed with spur gearbox and eccentric output shaft. The series are mainly designed for label printer and measuring instrument. The spur gears can be made with metal gears or plastic gears. Different gear ratio is available.
Inquire Now Next Product
GM24 Gear Motor

Product Description

Performance data:



Vol: 1.2-12V DC

Gear Ratio: 50-150

Output Speed:25-200RPM

Output Power: 0.5-5W





Typical model performance





  Type



Ratio



   Load  Performance



Stall























Vol

Current

Speed

Torque

Out Power

Stall Current

Stall Torque





(V)

(A)

(RPM)

(Kg-cm)

(W)

(A)

(Kg-cm)

GM24-150

150

6

0.85

53

2.3

1.25

2.41

9.47

GM24-75

75

12

0.42

111

1.18

1.34

1.17

4.5

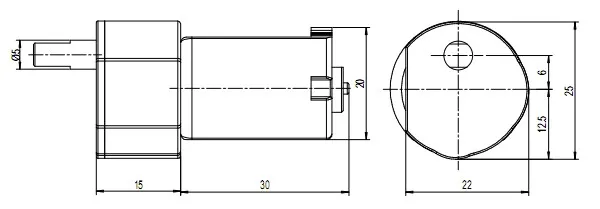

Size Drawing:
