Product Description

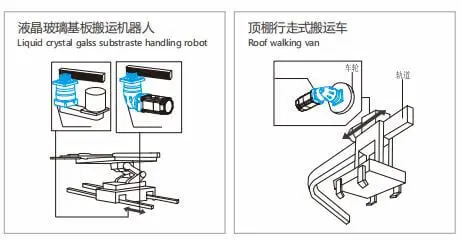

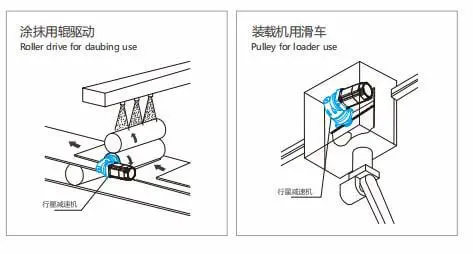

Single support straight teeth(code A) and double supporting helical teeth (code C) option for different precision planetary reducer request. Servo planetary gearbox performance for kinds of automation project: roller drive for daubing, pulley for loader, roof walking van and more.
Features:
1. Low Noise : Under 62dB
2. Low Backlash: One backlash is under 3 arcmin. 2 stage backlash less than 8 arcmin. 3 stage backlash less than 10 arcmin
3. High Efficiency:Efficiency for 1 stage model exceeds 95%,2 stage model exceeds 92%
4. High Input Speed: Input speed could be up to 8000 RPM
5. High Torque: Higher torque output than the conventional planetary gear reducer
6. High Stability: use high tensile strength alloy steel. Gear hardening is made of the entire gear instead of only surface hardening,which extends gear service life and maintain high accuracy after a long period of operation
7. Wide Gear Reduction Ratio Selection: 3-1000
8. Model: PZE60/PZE85/PZE115/PZE160
PZF060/PZF085/PZF115/PZF140/PZF180
PZH47/PZH64/PZH90/PZH110/PZH140/PZH200
PZK60/PZK85/PZK115/PZK140/PZK160
9. Output Rated Torque Range:From 16Nm to 720Nm
10. Adapter-bushing connection,can be attached to any motor
11. No Grease Leakage and Maintenance-free
Right Angle Planetary Gearbox Application:
