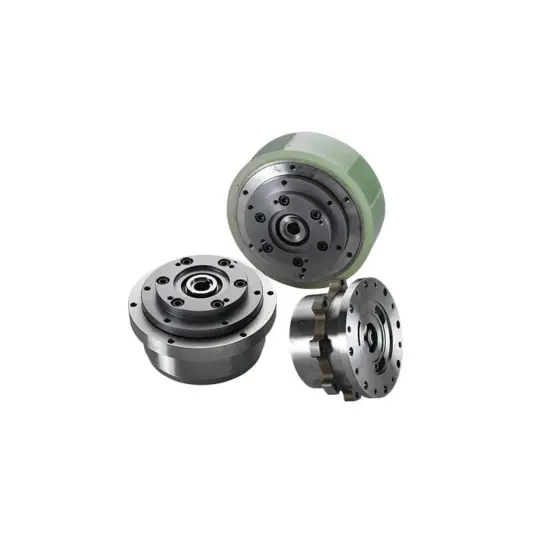

Product Description
Features:

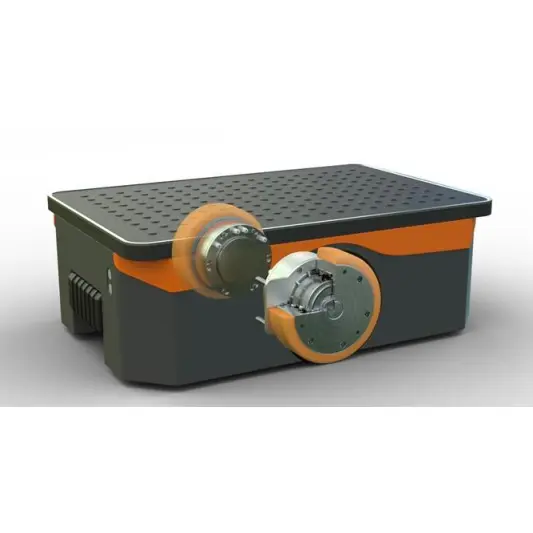

Short axial dimension AGV gearbox design
Compact structure with high efficiency working
Easy to mounted with any brand servo motor and stepper motor
Output torque from 15Nm to 120Nm
Gear ratio: from 3:1 to 60:1 (including customized gear ratio option)
Typical Model Data
|
Model |
Ratio |
Output torque |
Input speed |
Max radial bear force |
Max axial bear force |
Efficiency |
IP degree |
Bearing weight |
|
AGV130 |
15:1 |
27Nm |
3000rpm |
2200N |
520N |
94% |
IP54 |
200KG |
|
20:1 |
36Nm |
3000rpm |
2200N |
520N |
94% |
IP54 |
200KG |
|
|
24:1 |
15Nm |
3000rpm |
2200N |
520N |
94% |
IP54 |
200KG |
|
|
32:1 |
20Nm |
3000rpm |
2200N |
520N |
94% |
IP54 |
200KG |
|
|
AGV150 |
20:1 |
38Nm |
3000rpm |
3000N |
800N |
90% |
IP54 |
400KG |
|
25:1 |
33Nm |
3000rpm |
3000N |
800N |
90% |
IP54 |
400KG |
|
|
28:1 |
38Nm |
3000rpm |
3000N |
800N |
90% |
IP54 |
400KG |
|
|
35:1 |
33Nm |
3000rpm |
3000N |
800N |
90% |
IP54 |
400KG |
|
|
AGV160 |
15:1 |
120Nm |
3000rpm |
6800N |
850N |
90% |
IP54 |
1000KG |
|
21:1 |
80Nm |
3000rpm |
6800N |
850N |
90% |
IP54 |
1000KG |
|
|
30:1 |
60Nm |
3000rpm |
6800N |
850N |
90% |
IP54 |
1000KG |
|
|
40:1 |
60Nm |
3000rpm |
6800N |
850N |
90% |
IP54 |
1000KG |
|
|
All |
3:1; 4:1; 6:1; 9:1; 42:1; 60:1 can be customized made |
|||||||

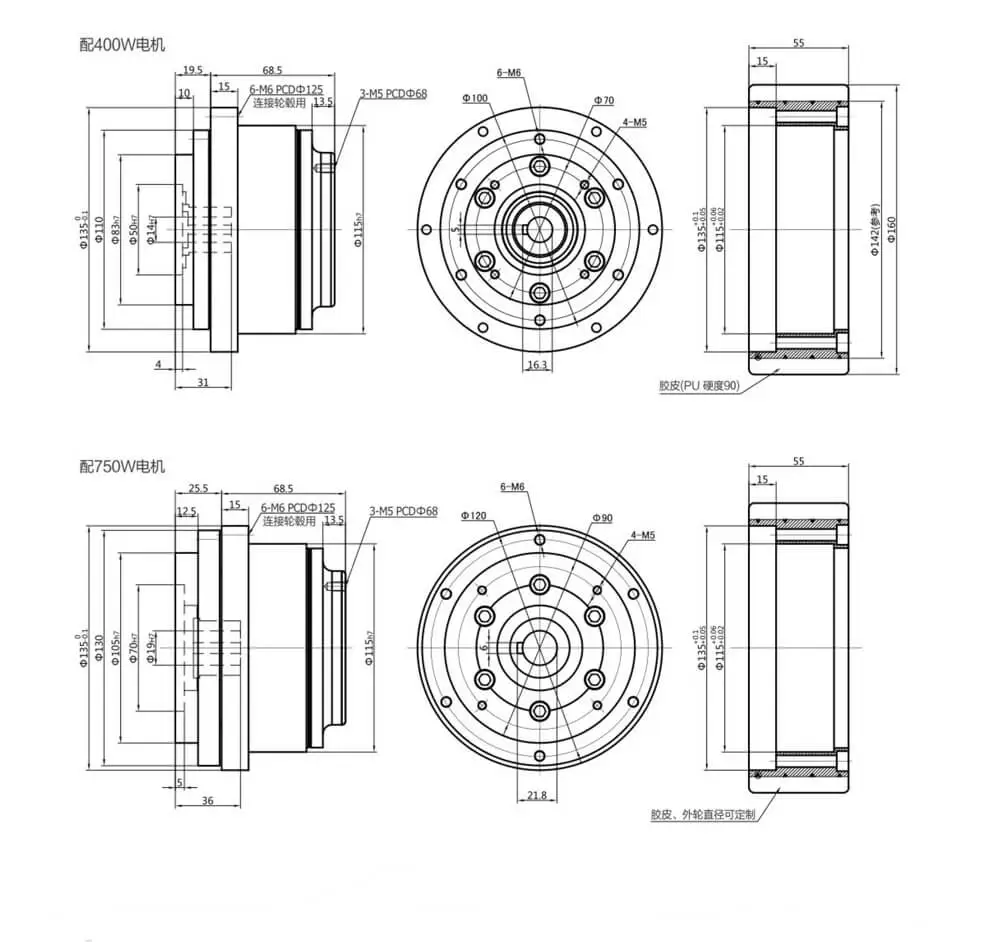

AGV160 Size Drawing:
