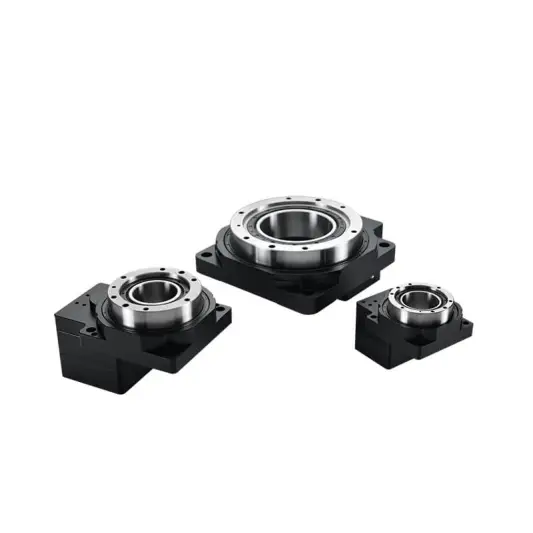

Product Description
Features:
Short axial dimension
The bearing rolling moment is large
Flexible installation: horizontal installation, vertical installation, hang upside down.
Easy to mounted with any brand servo motor and stepper motor
High accuracy position, the repeated positioning accuracy can be ±0.008°
Gear ratio: 5/10/15/18
Typical Model Data
|
Model |
Unit |
RPA60 |
RPA85 |
RPA130 |
RPA200 |
RPA280 |
RPA450 |
|
Rated torque |
Nm |
3.5-6 |
7.5-35 |
25-50 |
50-90 |
150 |
450 |
|
No-load torque |
Nm |
0.1 |
0.18 |
0.6 |
1.2 |
1.8 |
2.6 |
|
Bearing type |
|
6028 |
8533 |
13062 |
200100 |
180150 |
450250 |
|
Max radial force |
N |
1800 |
4500 |
8000 |
12000 |
12500 |
18500 |
|
Max axial force |
N |
1800 |
4500 |
8000 |
12000 |
12500 |
18500 |
|
Max overturn moment |
Nm |
120 |
340 |
1000 |
2200 |
3000 |
4000 |
|
The end beating |
mm |
≤0.01 |
≤0.01 |
≤0.01 |
≤0.01 |
≤0.02 |
≤0.02 |
|
Radial beating |
mm |
≤0.01 |
≤0.01 |
≤0.01 |
≤0.01 |
≤0.02 |
≤0.02 |
|
Rotary precision |
arcmin |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
|
Rated output speed |
rpm |
200 |
200 |
200 |
200 |
100 |
100 |
|
Max output speed |
rpm |
500 |
450 |
350 |
350 |
200 |
200 |
|
Weight |
kg |
0.55 |
1.4 |
2.5 |
8.8 |
25 |
40 |
|
Noise |
dB |
≤55 |
≤55 |
≤58 |
≤62 |
≤65 |
≤68 |
|
Life time |
h |
20000 |
|||||
|
Protection degree |
IP |
IP50 |
|||||
|
Max efficiency |
% |
90 |
|||||

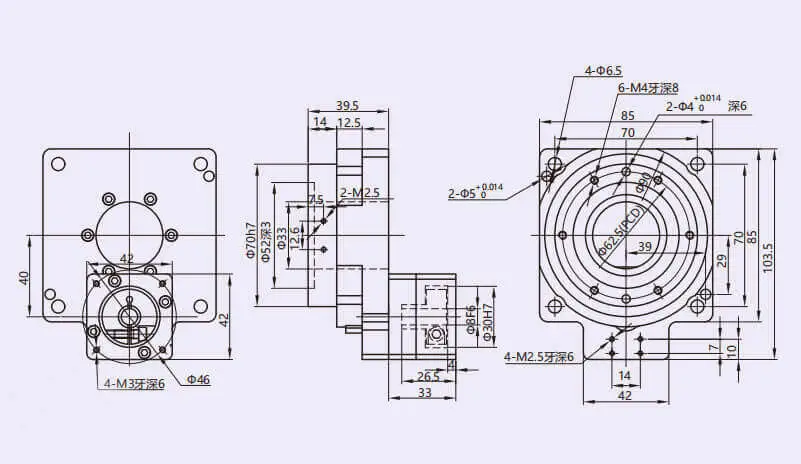

RPA85 Size Drawing:
