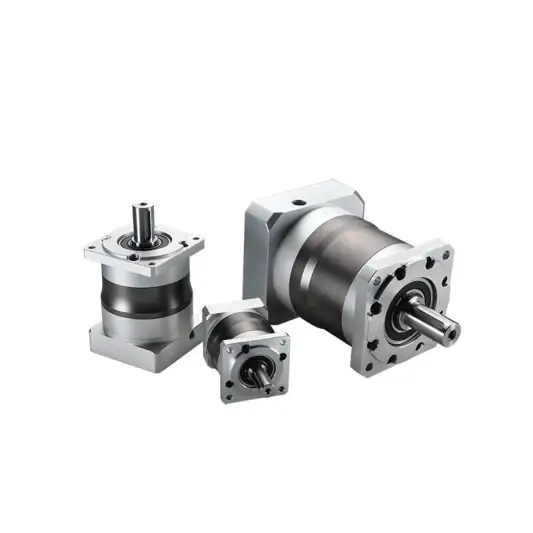

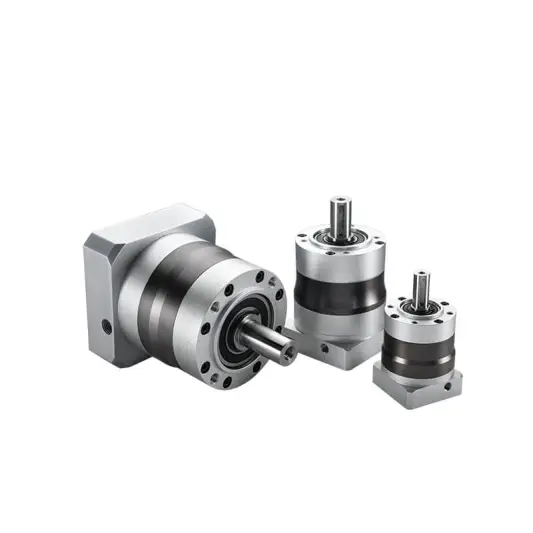

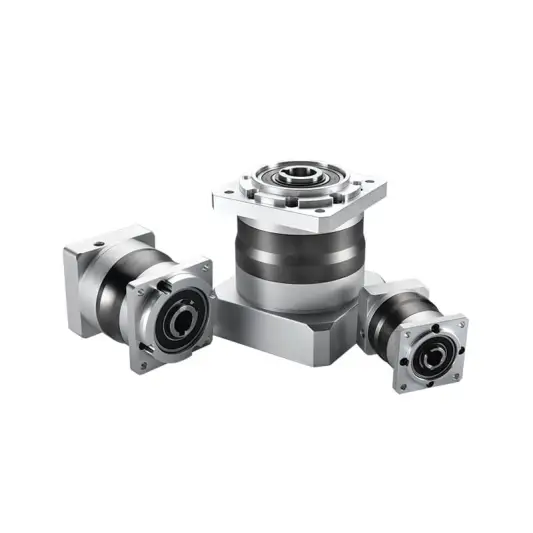

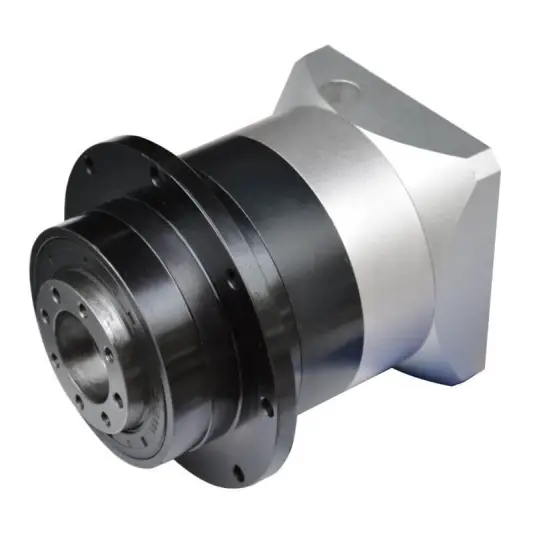

Product Description
Single support straight teeth(code A) and double supporting helical teeth (code C) option for different precision planetary reducer request. Servo planetary gearbox performance for kinds of automation project: Aerospace,military industry; Industrial robots; warehouse logistics industry and more.
Features:
1. Low Noise : Under 62dB
2. Low Backlash: One backlash is under 3 arcmin. 2 stage backlash less than 8 arcmin. 3 stage backlash less than 10 arcmin
3. High Efficiency:Efficiency for 1 stage model exceeds 95%,2 stage model exceeds 92%
4. High Input Speed: Input speed could be up to 8000 RPM
5. High Torque: Higher torque output than the conventional planetary gear reducer
6. High Stability: use high tensile strength alloy steel. Gear hardening is made of the entire gear instead of only surface hardening,which extends gear service life and maintain high accuracy after a long period of operation
7. Wide Gear Reduction Ratio Selection: 3-1000
8. Model: PLE60/PLE85/PLE115/PLE160
PLF060/PLF085/PLF115/PLF140/PLF180
PLH47/PLH64/PLH90/PLH110/PLH140/PLH200
PLK60/PLK85/PLK115/PLK140/PLK160
9. Output Rated Torque Range:From 16Nm to 720Nm
10. Adapter-bushing connection,can be attached to any motor
11. No Grease Leakage and Maintenance-free

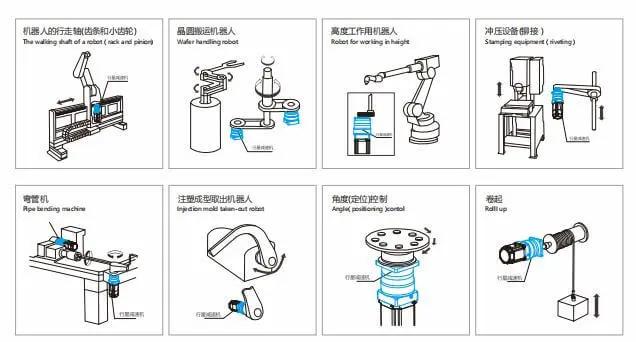

Inline Planetary Gearbox Application:
