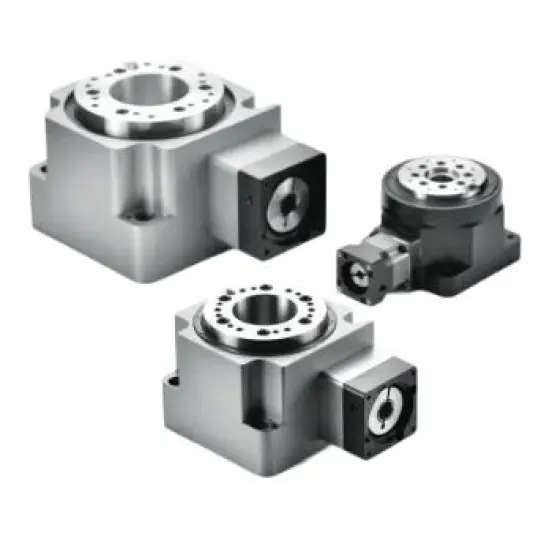

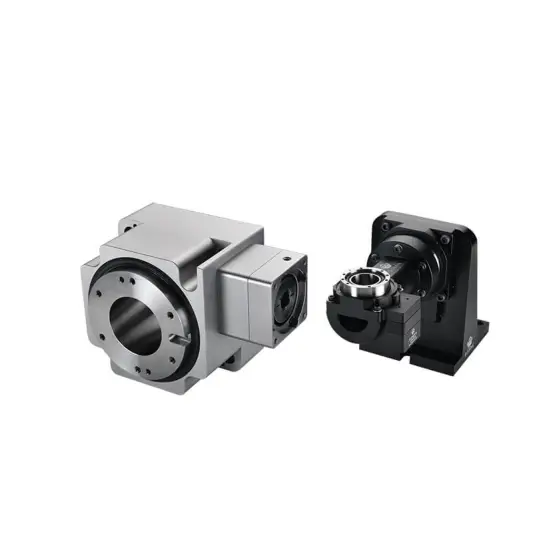

Product Description
When your operation needs positioning for welding, machining or inspection, these indexing tables provide accuracy with high force.
Features:
Short axial dimension
The bearing rolling moment is large
Flexible installation: horizontal installation, vertical installation, hang upside down.
Easy to mounted with any brand servo motor and stepper motor
High accuracy position, the repeated positioning accuracy can be ±0.008°
Typical Model Data
|
Model |
Unit |
RPD60 |
RPD120 |
RPD165 |
|
Rated torque |
Nm |
35 |
230 |
440 |
|
Max radial force |
N |
400 |
9000 |
18000 |
|
Max axial force |
N |
400 |
9000 |
18000 |
|
The end beating |
mm |
≤0.01 |
≤0.01 |
≤0.01 |
|
Radial beating |
mm |
≤0.01 |
≤0.01 |
≤0.01 |
|
Rotary precision |
arcmin |
≤1 |
≤1 |
≤1 |
|
Rated output speed |
rpm |
100 |
100 |
100 |
|
Max output speed |
rpm |
200 |
200 |
150 |
|
Weight |
kg |
1 |
5 |
10 |
|
Noise |
dB |
≤60 |
≤62 |
≤65 |
|
Support loading |
kg |
5 |
160 |
400 |
|
Adapted motor |
w |
100 |
400 |
750 |
|
Life time |
h |
20000 |
||
|
Protection degree |
IP |
IP65 |
||
|
Gear ratio |
|
30:1 |
||

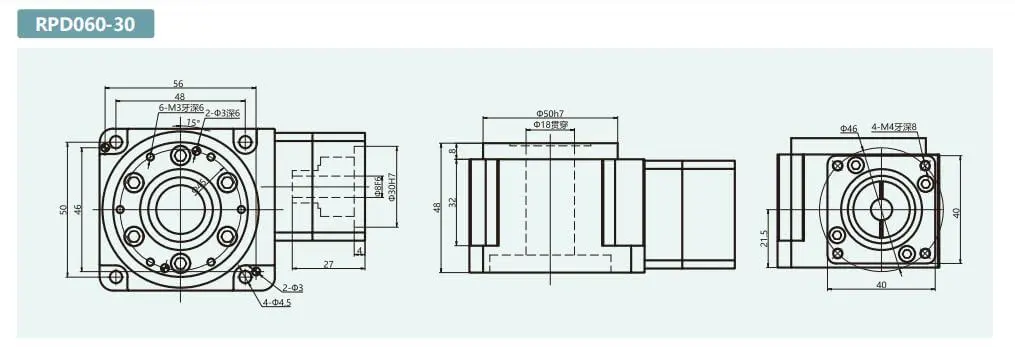

Size Drawing:
