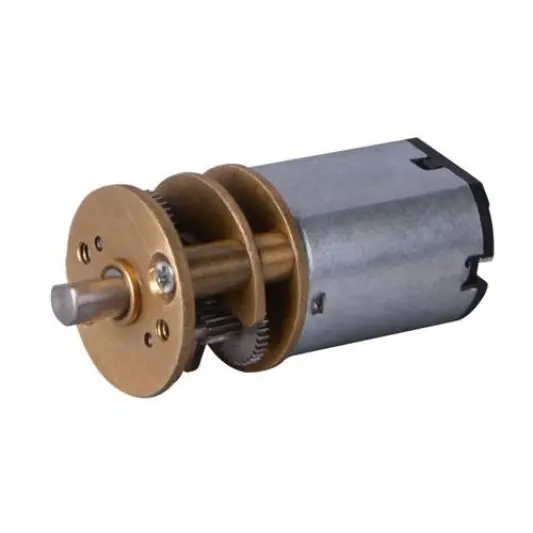

GM13 Micro Gear Motor

GM13 dc gear motors designed with micro spur gearbox . The series are mainly designed for cosmetology instrument and the popular digital consumer electronics products. The spur gears are made with precision metal gears. Different gear ratio is available. The motors can be N20 or N30 series.

Inquire Now Next Product

Product Description

Performance data:

Vol: 1.2-6V DC

Gear Ratio: 5-298

Output Speed:10-500RPM

Output Power: 0.06-1.05W

Typical model performance

Type	Ratio	Load Performance					Stall

		Vol	Current	Speed	Torque	Out Power	Stall Current	Stall Torque
		(V)	(A)	(RPM)	(Kg-cm)	(W)	(A)	(Kg-cm)
GM13A-150	150	4.5	0.25	55	0.2	0.12	0.79	0.93
GM13B-150	150	6	0.3	62	0.6	0.38	0.86	2.46
