Product Description
Performance data:
Vol/Freq: 100-250V. 50/60 Hz
Gear Ratio: 20-1200
Output Speed:4-85RPM
Output Power: 1.5-30W
Insulation Class: A B F H
Typical model performance
|
Type |
Ratio |
Load Performance |
Stall |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Vol |
Current |
Speed |
Torque |
Out Power |
Stall Current |
Stall Torque |
|
|
|
(V) |
(A) |
(RPM) |
(Kg-cm) |
(W) |
(A) |
(Kg-cm) |
|
GM6040-SP60 |
839 |
230/50 |
0.43 |
4 |
20.54 |
0.79 |
0.46 |
44 |
|
GM6025-SP60 |
39 |
120/60 |
0.49 |
42 |
15.7 |
6.7 |
0.6 |
35.3 |

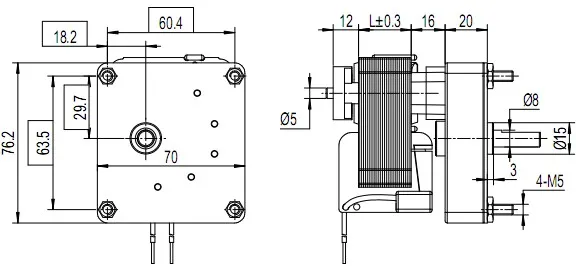

Size Drawing:
