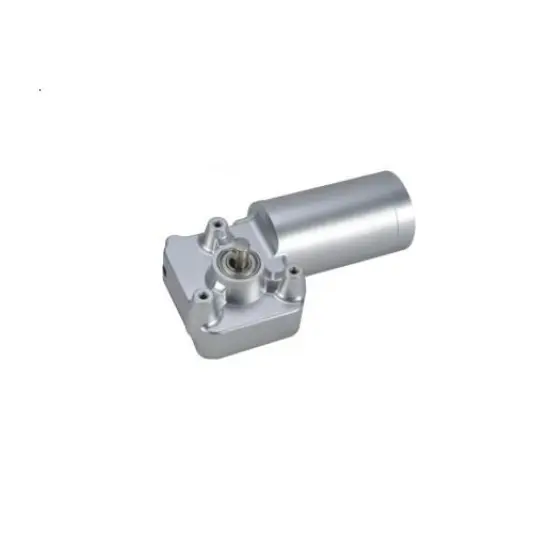

GM40 Worm Gear Motor

GM40 gear motors designed with worm and worm wheel drive for right angle rotation. The series are mainly designed for juice extractor and electrically-operated door. Different gear ratio is available.

Product Description

Performance data:

Vol/Freq: 110-230V. 50/60 Hz

Gear Ratio: 10-65

Output Speed:45-500RPM

Output Power: 15-200W

Insulation Class: A B F H

Typical model performance

Type	Ratio	Load Performance					Stall

		Vol	Current	Speed	Torque	Out Power	Stall Current	Stall Torque
		(V)	(A)	(RPM)	(Kg-cm)	(W)	(A)	(Kg-cm)
GM40-50	50	120/60	2.74	68	23.2	16.13	15	150
GM40-25	25	230/50	3.38	195	13.2	26.4	19	87.5

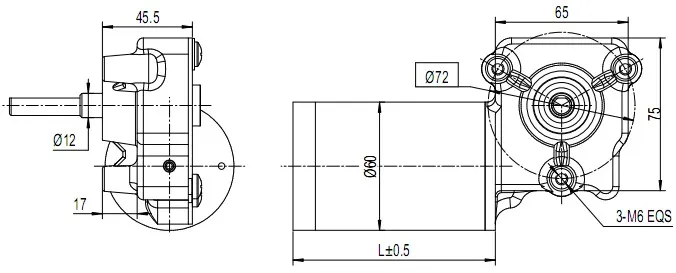

Size Drawing:
