Product Description
Performance data:
Vol: 1.2-6V DC
Gear Ratio: 5-298
Output Speed:10-500RPM
Output Power: 0.06-1.05W
Typical model performance
|
Type |
Ratio |
Load Performance |
Stall |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Vol |
Current |
Speed |
Torque |
Out Power |
Stall Current |
Stall Torque |
|
|
|
(V) |
(A) |
(RPM) |
(Kg-cm) |
(W) |
(A) |
(Kg-cm) |
|
GM12-50 |
50 |
2.5 |
0.15 |
76 |
0.11 |
0.08 |
0.42 |
0.7 |
|
GM12-210 |
210 |
50 |
0.23 |
43 |
0.5 |
0.22 |
0.5 |
1.5 |

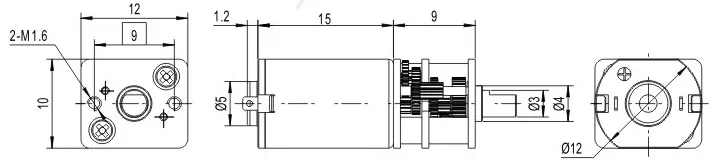

Size Drawing:
