Product Description
Performance data:
Vol./Freq: 100-240v 50/60Hz
Rated Speed:10000-35000RPM
Rated Input Power: 600-1500W
Insulation class: A B F H
Notice: we can design and manufacture more Vacuum Cleaner Motors according to customer's requirement.
Typical model performance
|
Type |
Length |
Vol/Frequency |
Motor type |
P1(input power) |
Min Speed |
Max Vacuum |
Eff. |
|
|
(mm) |
（V/Hz） |
|
(W) |
(RPM) |
(KPa) |
(%) |
|
VC8224 |
24 |
230/50 |
Dry type |
1500 |
32000 |
28.0 |
39.5 |

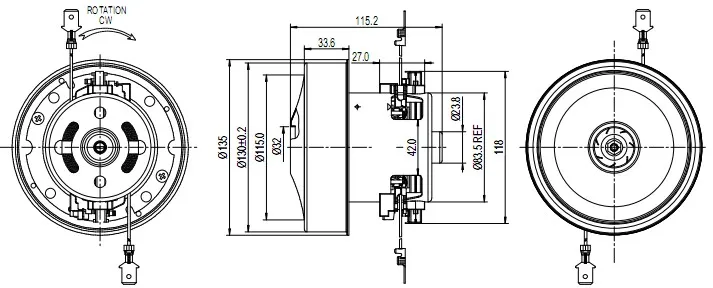

Size Drawing:
