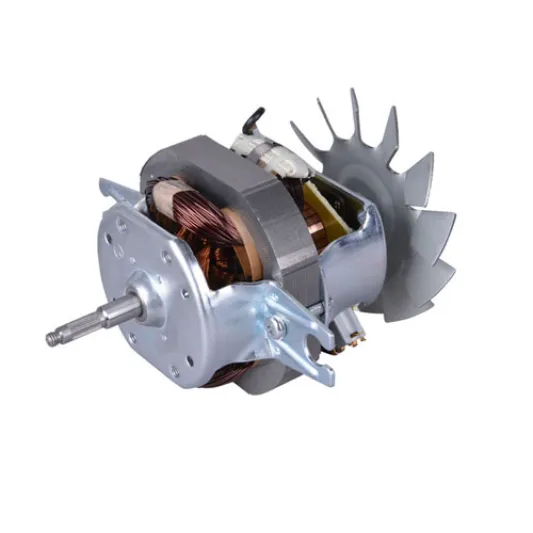

U90 series Universal Motor

U90 series universal motor are designed for kinds of multi-function food processing equipment. Designed with metal cooling fan. Pure copper winding made. High power and high speed.
Inquire Now Next Product
U90 series Universal Motor

Product Description

Performance data:



Vol./Freq: 100-240v  50/60Hz

Rated Speed:6000-20000RPM

Rated Input Power: 150-1000W

Insulation class: A B F H



Typical model performance



Type

Length

Vol/Frequency

Current

P1(input power)

Speed

Torque

P2(output power)

Eff.



(mm)

（V/Hz）

(A)

(W)

(RPM)

(mN.m)

(W)

(%)

U9012

12

120/60

4.11

454

10191

195.2

208

45.9

U9025

25

120/60

4.58

506

11000

233.2

269

53.1

U9030

30

120/60

6.21

700

12000

309.7

389

55.6

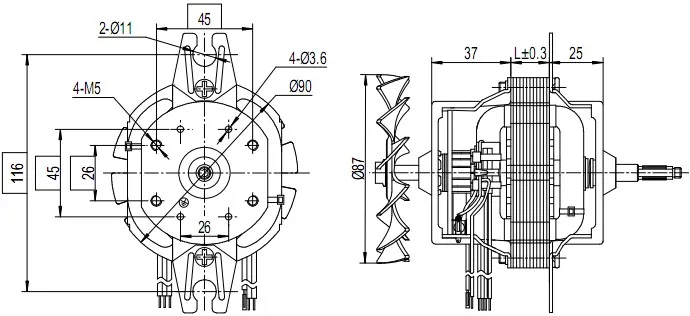

Size Drawing:
