U95 series Universal Motor

U95 series universal motors are high power and high speed motor. Pure copper winding made. Designed for Food Processor, Lawn Mower Grinding Machine, commercial vacuum cleaner.
Inquire Now Next Product
U95 series Universal Motor

Product Description

Performance data:



Vol./Freq: 100-240v  50/60Hz

Rated Speed:8000-20000RPM

Rated Input Power: 500-1500W

Insulation class: A B F H



Typical model performance



Type

Length

Vol/Frequency

Current

P1(input power)

Speed

Torque

P2(output power)

Eff.



(mm)

（V/Hz）

(A)

(W)

(RPM)

(mN.m)

(W)

(%)

U9525

25

120/60

6.14

700

10000

368.9

386

55.2

U9530

30

220/50

3.83

800

11000

410.4

472

59.1

U9540

40

220/50

4.81

1000

12500

484.3

634

63.4

U9550

50

220/50

5.86

1217

14024

557.6

819

67.3

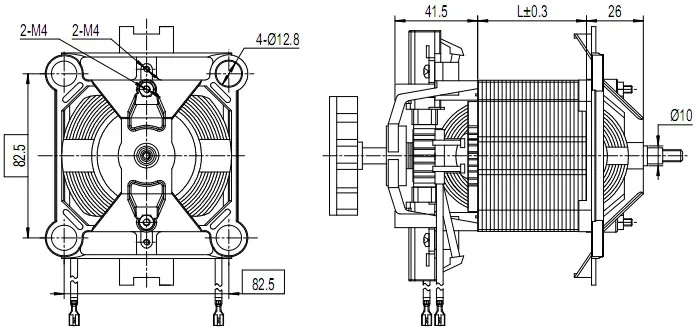

Size Drawing:
