U76 series Universal Motor

U76 series universal motor are designed for kinds of home multi-function food processing equipment. Pure copper winding made. Motor stator can be made with different length to meet different motor performance request.
Inquire Now Next Product
U76 series Universal Motor

Product Description

Performance data:



Vol./Freq: 100-240v  50/60Hz

Rated Speed:6000-22000RPM

Rated Input Power: 100-700W

Insulation class: A B F H





Typical model performance



Type

Length

Vol/Frequency

Current

P1(input power)

Speed

Torque

P2(output power)

Eff.



(mm)

（V/Hz）

(A)

(W)

(RPM)

(mN.m)

(W)

(%)

U7625

25

100/50

4.44

400

9000

204.5

193

48.2

U7630

30

240/50

2.26

500

10000

238.7

250

50

U7640

40

220/60

3

600

5800

548.2

333

55.5

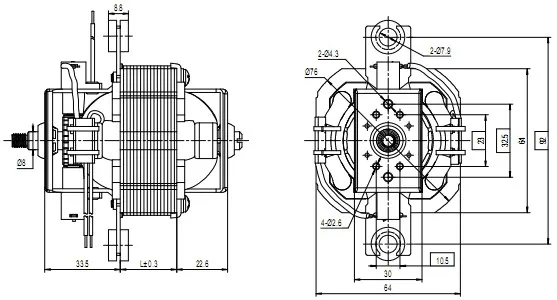

Size Drawing:
