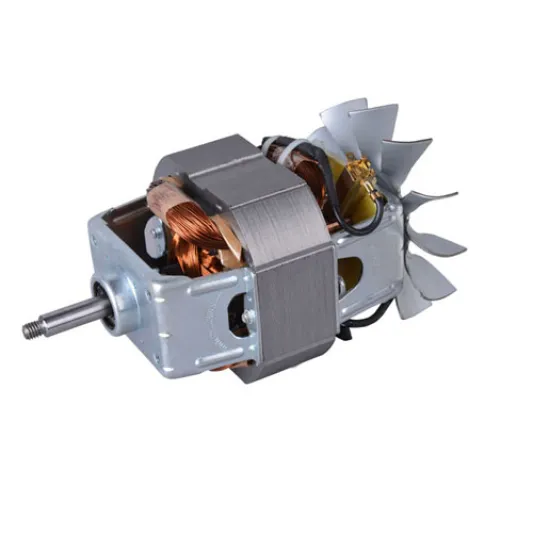

U88 series Universal Motor

U88 series universal motor are designed for kinds of home multi-function food processing equipment. Designed with cooling fan. Pure copper winding made. Motor stator can be made with different length to meet different motor performance request.
Inquire Now Next Product
U88 series Universal Motor

Product Description

Performance data:



Vol./Freq: 100-240v  50/60Hz

Rated Speed:5000-15000RPM

Rated Input Power: 100-800W

Insulation class: A B F H



Typical model performance



Type

Length

Vol/Frequency

Current

P1(input power)

Speed

Torque

P2(output power)

Eff.



(mm)

（V/Hz）

(A)

(W)

(RPM)

(mN.m)

(W)

(%)

U8820

20

230/50

1.55

332

12500

166.6

218

65.7

U8835

35

230/50

2.34

500

13000

244.2

333

66.5

U8840

40

120/60

7.09

800

14000

372.1

546

68.2

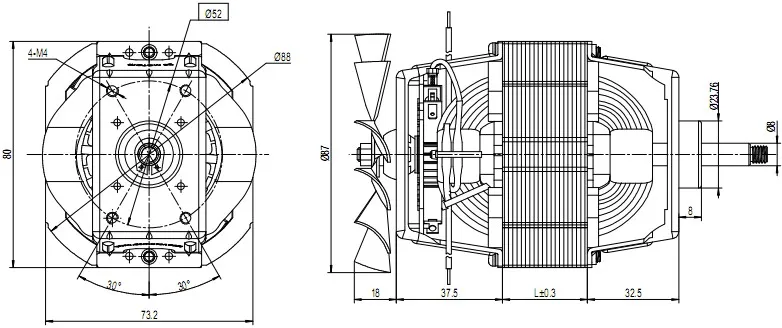

Size Drawing:
