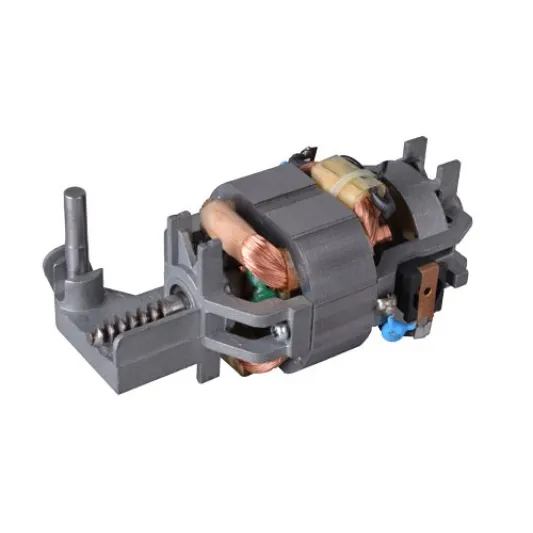

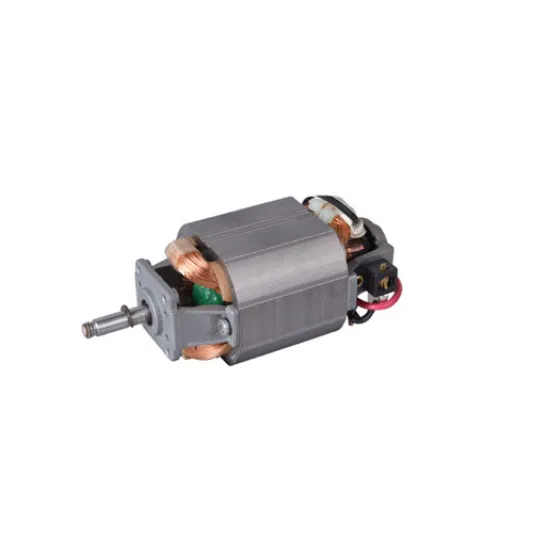

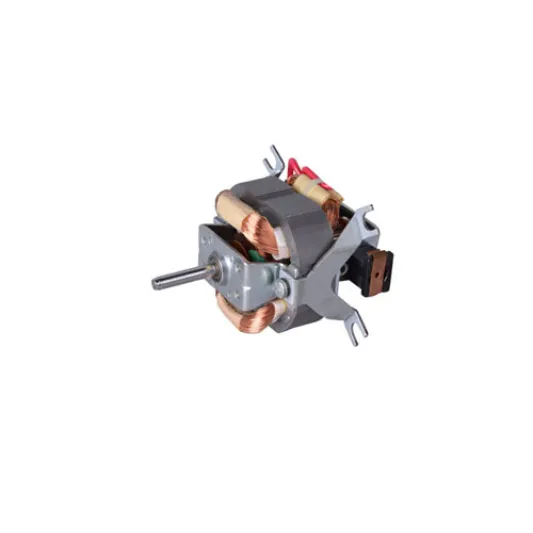

U54 series Universal Motor

U54 series include U54A, U54B, U54C, U54D. They can be used as AC motors which are used for blender, bean shredding machine, coffee grinder, meat grinder. High speed with low cost selection.

Inquire Now Next Product

Product Description

Performance data:

Vol./Freq: 100-240v 50/60Hz

Rated Speed:5000-20000RPM

Rated Input Power: 70-600W

Insulation class: A B F H

Typical model performance

Type	Length	Vol/Frequency	Current	P1(input power)	Speed	Torque	P2(output power)	Eff.
	(mm)	（V/Hz）	(A)	(W)	(RPM)	(mN.m)	(W)	(%)
U5415A	15	230/50	0.55	120	16500	26.9	45	37.5
U5420A	20	230/50	0.73	160	15000	47.8	75	46.9
U5425B	25	230/50	0.7	150	8000	80.6	67	44.7
U5440B	40	230/50	1.38	300	9500	166	165	55
U5412C	12	230/50	0.42	90	13500	18.4	26	28.9
U5415C	15	230/50	0.54	120	14500	27.7	42	35
U5430D	30	230/50	0.68	150	10500	71	78	52
U5435D	35	230/50	0.92	200	11000	97.4	112	56
