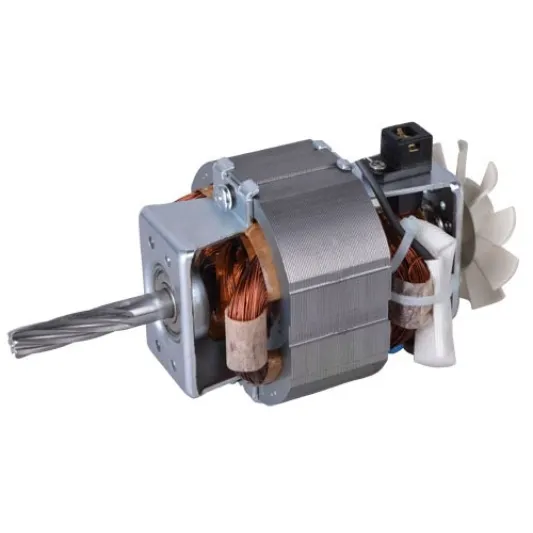

U70 series Universal Motor

U70 series AC universal motor are designed for kinds of multi-function food processing equipment. Such as Juice Extractor, blender, meat mixer and other food grinder. Motor stator can be made with different length.

Inquire Now Next Product

Product Description

Performance data:

Vol./Freq: 100-240v 50/60Hz

Rated Speed:7000-22000RPM

Rated Input Power: 100-700W

Insulation class: A B F H

Typical model performance

Type	Length	Vol/Frequency	Current	P1(input power)	Speed	Torque	P2(output power)	Eff.
	(mm)	（V/Hz）	(A)	(W)	(RPM)	(mN.m)	(W)	(%)
U7020	20	120/60	2.73	300	8000	165.8	139	46.3
U7030	30	120/60	3.79	417	8962	225.2	211	50.7
U7040	40	120/60	4.53	500	10000	264	277	55.3

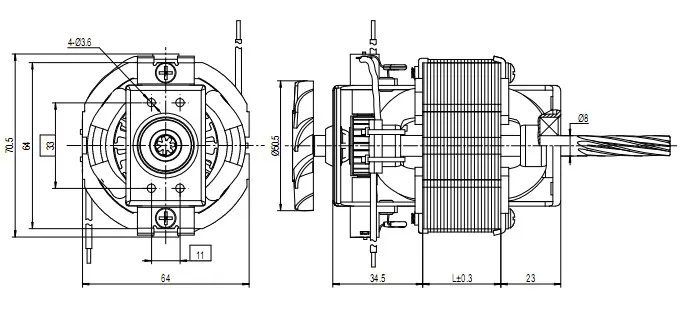

Size Drawing:
