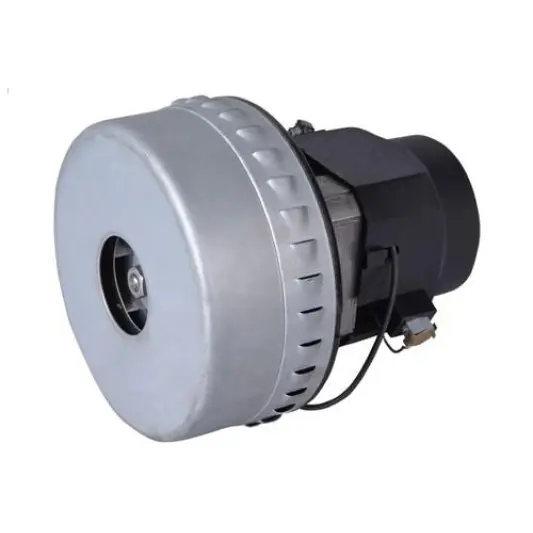

VC95 series Universal Motor

VC95 series universal motors are high power and high speed motor for vacuum cleaner. Pure copper winding made. Designed with fan for both dry and wet type vacuum cleaner. Up to 1800W input power and 35000RPM speed.

Inquire Now Next Product

Product Description

Performance data:

Vol./Freq: 100-240v 50/60Hz

Rated Speed:10000-35000RPM

Rated Input Power: 600-1800W

Insulation class: A B F H

Typical model performance

Type	Length	Vol/Frequency	Motor type	P1(input power)	Min Speed	Max Vacuum	Eff.
	(mm)	（V/Hz）		(W)	(RPM)	(KPa)	(%)
VC9525	25	230/50	Wet/Dry type	1000	20000	20.0	39.5

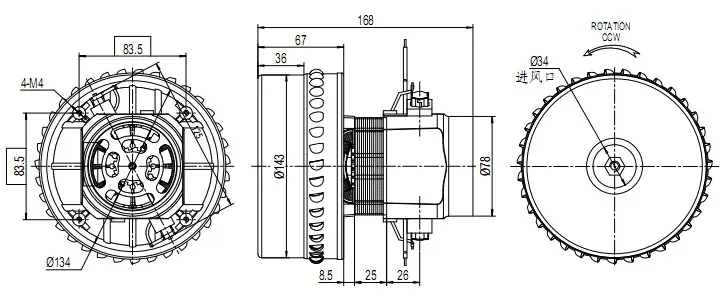

Size Drawing:
