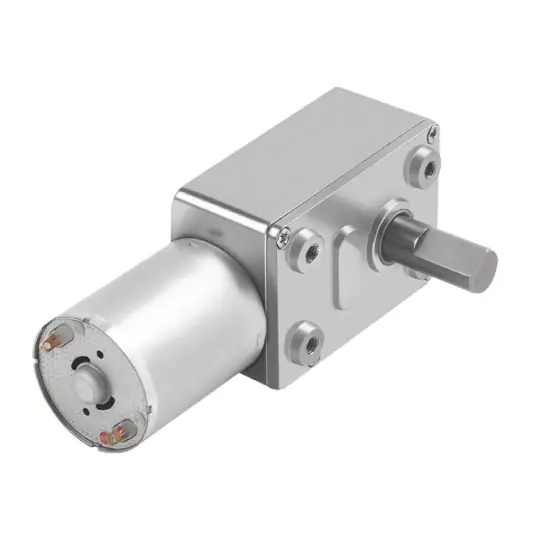

GM46 Worm Gear Motor

GM46 gear motors designed with worm and worm wheel drive gearbox. The series are mainly designed for medical instrument and automatic vending machine. This small worm gearbox can be mounted with 6V, 12V,24V dc brush 370 series motor. The output shaft can be made with D shape, round, thread type. Right angle drive with CW and CCW rotation. Wide gear ratio selection.

Inquire Now Next Product

Product Description

Performance data:

Vol: 6-24V DC

Gear Ratio: 32-3037

Output Speed:2-180RPM

Output Power: 2.4-2.6W

Insulation Class: A B F H

Typical model performance

Type	Ratio	Load Performance					Stall

		Vol	Current	Speed	Torque	Out Power	Stall Current	Stall Torque
		(V)	(A)	(RPM)	(Kg-cm)	(W)	(A)	(Kg-cm)
GM4632-370	32.5	12	0.12	180	1.8	2.5	3.1	4.1
