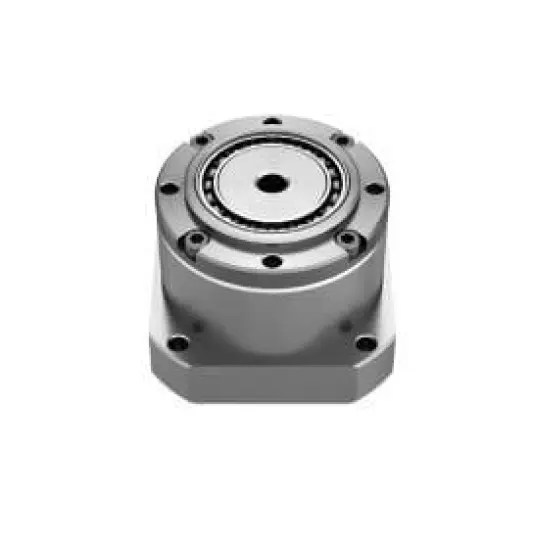

Product Description
Features:
- Small size and lightweight
- Compact and streamlined structural design, zero backlash, and easy installation
- Utilizes cross roller bearings
- Coaxial input and output
- Excellent positioning and rotational accuracy
Typical Model Data
| Model | Ratio |
Rated toruqe at 2000r/min input |
Permissible peak torque at start and stop |
Permissible max value for average load Torque |
Permissible max momentary torque |
Max input speed |
Average load speed |
Backlash | Weight | Life | ||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 8 | 50 | 1.8 | 0.18 | 3.3 | 0.34 | 2.3 | 0.23 | 6.6 | 0.67 | 8500 | 3500 | ≤40 | LSN-I:0.08 | 10000 |
| 100 | 2.4 | 0.24 | 4.8 | 0.49 | 3.3 | 0.34 | 9 | 0.92 | 10000 | |||||
| 11 | 50 | 3.5 | 0.36 | 8.3 | 0.85 | 5.5 | 0.56 | 17 | 1.73 | 8500 | 3500 | ≤30 |
LSS-I:0.25 LSN-I:0.17 |
10000 |
| 80 | 4.5 | 0.46 | 9.9 | 1.01 | 8 | 0.82 | 22.5 | 2.3 | 10000 | |||||
| 100 | 5 | 0.51 | 11 | 1.12 | 8.9 | 0.91 | 25 | 2.55 | 10000 | |||||
Size Drawing:
