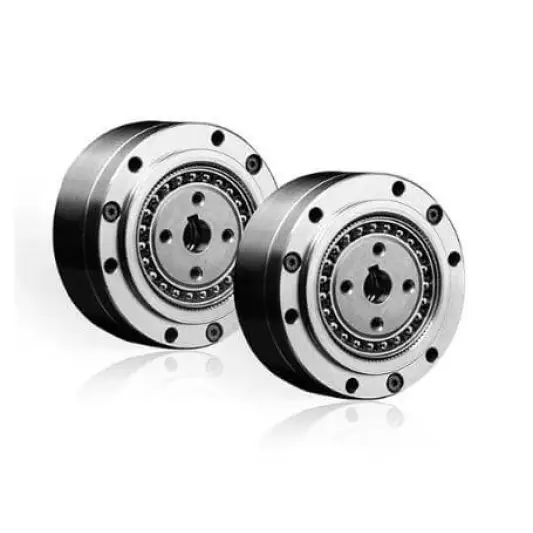

Product Description
LSS series: adopts our newest developed 'LS' tooth profile, equipped to support external loads, featuring high rigidity cross roller bearings, making it a combination product that is easy to operate.
LSN series: the lightweight product line, designed to reduce the weight of the mechanical equipment itself and facilitate the lightweight construction of industrial robots. It enables higher speeds and increased payload capacity for industrial robots.
LSG series: harmonic reducer employs a cup-shaped standard barrel structure for its flexible wheel, specifically developed for high-torque applications. With torque-bearing capacity surpassing 30% compared to the LSS series, it boasts an enhanced lifespan of over 43%, striving for high load capacity and reliability.
LSD series: harmonic reducer features an ultra-thin cup-shaped structure, inheriting the excellent performance of traditional products while showcasing bold design innovations.
LFS series: an ultra-flat harmonic actuator design, ensuring compatibility with space-constrained applications. It ensures smooth and precise motion control, enhancing overall performance.
Specification of LSD Rated parameters
| Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed | Permissible average input rotational speed | Backlash | Weight | Design life | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grease | Grease | |||||||||||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 14 | 50 | 3.7 | 0.38 | 12 | 1.2 | 4.8 | 0.49 | 24 | 2.4 | 8500 | 3500 | ≤20 | LSD-I:0.37 LSD-P:0.56 |
9000 |
| 80 | 5.4 | 0.55 | 16 | 1.6 | 7.7 | 0.79 | 35 | 3.6 | 10000 | |||||
| 100 | 5.4 | 0.55 | 19 | 1.9 | 7.7 | 0.79 | 35 | 3.6 | 10000 | |||||
| 17 | 50 | 11 | 1.1 | 23 | 2.3 | 18 | 1.9 | 48 | 4.9 | 7300 | 3500 | ≤20 | LSD-I:0.49 LSD-P:0.65 |
9000 |
| 80 | 15 | 1.5 | 29 | 3 | 19 | 1.9 | 61 | 6.2 | 10000 | |||||
| 100 | 16 | 1.6 | 37 | 3.8 | 27 | 2.8 | 71 | 7.2 | 10000 | |||||
| 20 | 50 | 17 | 1.7 | 39 | 4 | 24 | 2.4 | 69 | 7 | 6500 | 3500 | ≤20 | LSD-I:0.68 LSD-P:0.96 |
9000 |
| 80 | 24 | 2.4 | 51 | 5.2 | 33 | 3.4 | 89 | 9.1 | 10000 | |||||
| 100 | 28 | 2.9 | 57 | 5.8 | 34 | 3.5 | 95 | 9.7 | 10000 | |||||
| 25 | 50 | 27 | 2.8 | 69 | 7 | 38 | 3.9 | 127 | 13 | 5600 | 3500 | ≤20 | LSD-I:1.25 LSD-P:1.72 |
9000 |
| 80 | 44 | 4.5 | 96 | 9.8 | 60 | 6.1 | 179 | 18 | 10000 | |||||
| 100 | 47 | 4.8 | 110 | 11 | 75 | 7.6 | 184 | 19 | 10000 | |||||
| 32 | 50 | 53 | 5.4 | 151 | 15 | 75 | 7.6 | 268 | 27 | 4800 | 3500 | ≤20 | LSD-I:2.48 LSD-P:3.35 |
9000 |
| 80 | 83 | 8.5 | 213 | 22 | 117 | 12 | 398 | 41 | 10000 | |||||
| 100 | 96 | 10 | 233 | 24 | 151 | 15 | 420 | 43 | 10000 | |||||

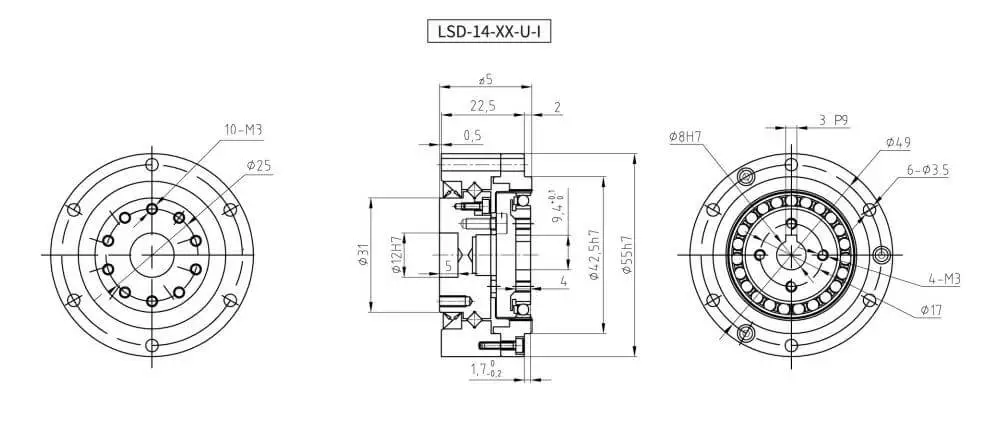

Size Drawing:
Other Size Data, ask our sales to get them.
