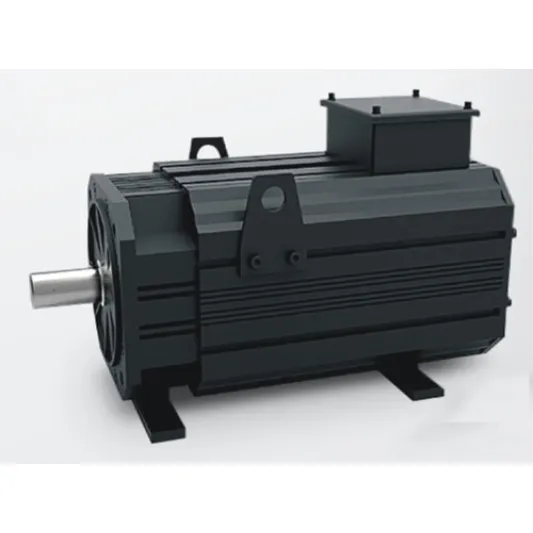

Product Description
SM180 series servo motor designed with flange size 180*180mm. They can offer rate torque from 10Nm to 48Nm. They can be used for wood cutting machine or other wood machinery drive control. The power range selection: 1.5KW/3KW/5.5KW/7.5KW/10KW. The motor length, encoder, brake, cooling method can be option for different request.
Features:
Voltage： 220V/380V/480V
Rate Power: 1.5-10KW
Rated speed：1500-2000 RPM
Rated torque：10-48N.M
Work temperature: -10-55℃
Insulation Class: H
Typical model data
|
Motor model |
Rated power (KW) |
Rated current (A) |
Rated voltage (V) |
Rated torque (N.m) |
Max torque (N.m) |
Rated Speed (RPM) |
Max Speed (RPM) |
Rotor Inertial (kg·m².10-3) |
|
SM180-01 |
1.5 |
3 |
380 AC |
10 |
20 |
1500 |
2500 |
3.6 |
|
SM180-02 |
3 |
5.6 |
380 AC |
19 |
38 |
1500 |
2500 |
6.6 |
|
SM180-03 |
5.5 |
10.6 |
380 AC |
26 |
52 |
2000 |
3000 |
6.6 |
|
SM180-04 |
7.5 |
14.5 |
380 AC |
35 |
70 |
2000 |
3000 |
8 |
|
SM180-05 |
10 |
19.7 |
380 AC |
48 |
96 |
2000 |
3000 |
8 |

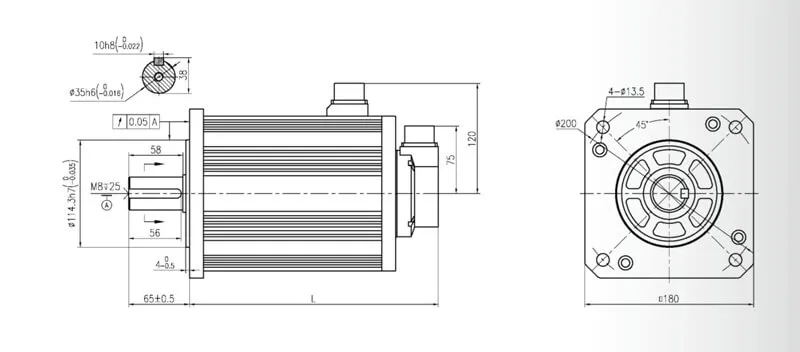

Size Drawing:
