Product Description

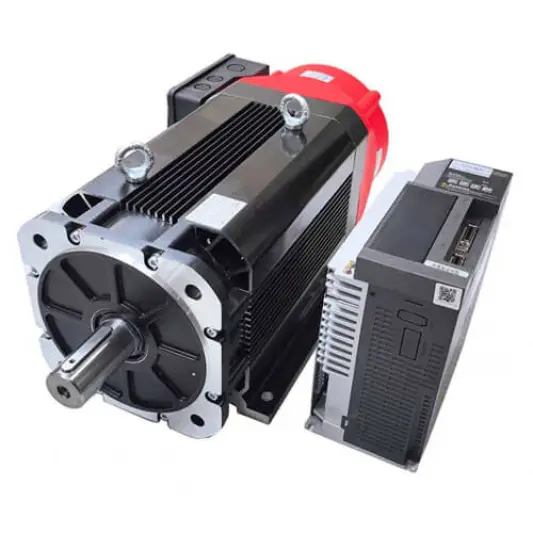

SM260 series servo motor designed with flange size 266*266mm. They can offer rate torque from 229Nm to 669Nm. High torque servo motor designed for heavy duty industrial machine automation. The power range selection: 48KW/67KW/85KW/95KW/105KW. The motor length, encoder, brake, cooling method can be option for different request.
Features:
Voltage： 220V/380V/480V
Rate Power: 48-105KW
Rated speed：1500-2000 RPM
Rated torque：229-669N.M
Work temperature: -10-55℃
Insulation Class: H
Typical model data
|
Motor model |
Rated power (KW) |
Rated current (A) |
Rated voltage (V) |
Rated torque (N.m) |
Max torque (N.m) |
Rated Speed (RPM) |
Max Speed (RPM) |
Rotor Inertial (kg·m².10-3) |
|
SM260-01 |
48 |
94.4 |
380 AC |
229 |
481 |
2000 |
2100 |
42 |
|
SM260-02 |
67 |
136.5 |
380 AC |
376 |
790 |
1700 |
2000 |
60 |
|
SM260-03 |
85 |
186 |
380 AC |
478 |
1003 |
1700 |
2000 |
72 |
|
SM260-04 |
95 |
206 |
380 AC |
534 |
1121 |
1700 |
2000 |
80 |
|
SM260-05 |
105 |
220 |
380 AC |
669 |
1404 |
1500 |
2000 |
88 |

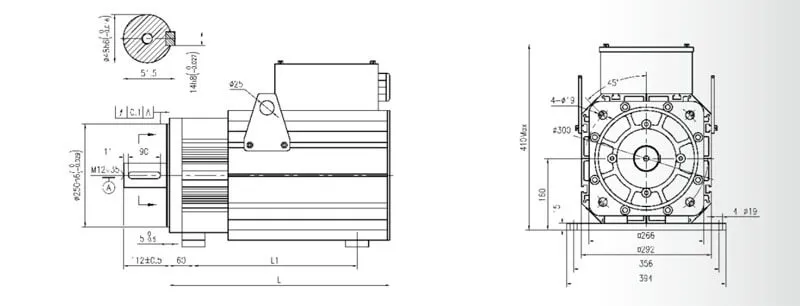

Size Drawing:
