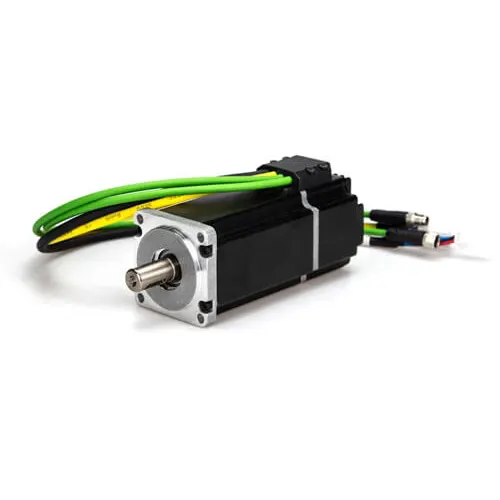

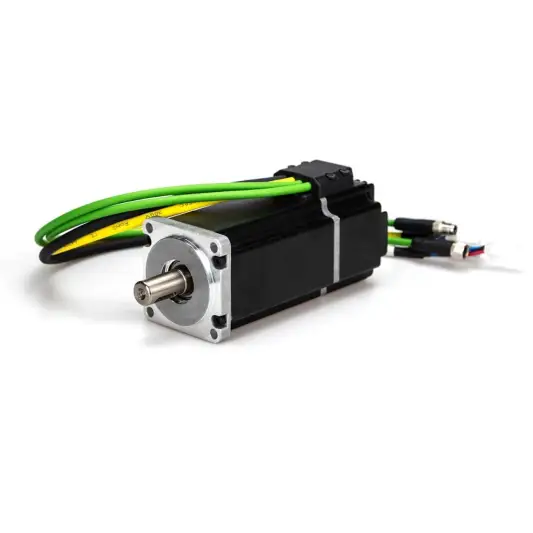

DC Servo Motor

IDV series servo motor belong to low voltage permanent magnet dc servo motor series. 60mm flange size. 200W and 400W option on stock. Voltage from 18V to 48V. Rated torque can be 1.27Nm. Integrated with control drive design. More simple connection with PLC and other controller. Small size but big torque. Ideal for AGV application which need small size servo motor.

Inquire Now Next Product

Product Description

Low voltage from 18-48V
5V double terminal pulse/direct command input
The max pulse frequency of the control command is 500KHz
With over-current, over-voltage, over-load protection
Built-in position command smoothing filter function
Using FOC magnetic field position technology and SVPWM technology
Built-in 17 bit high resolution magnetic encoder
With a variety of position/speed/torque command application modes
Configurable function of 3 digital input interfaces, 1 digital output interface

Typical model data

Motor model

Rated power

(W)

Rated current

(A)

Rated voltage

(V)

Rated torque

(N.m)

Max torque

(N.m)

Rated Speed

(RPM)

Max Speed

(RPM)

Rotor

Inertial

(Kg.cm2)

Weight

(KG)

IDV60-02

400

1.27

2.54

3000

5000

0.5*10⁴

1.0

IDV60-01

200

0.47

0.94

3000

5000

0.2*10⁴

0.8

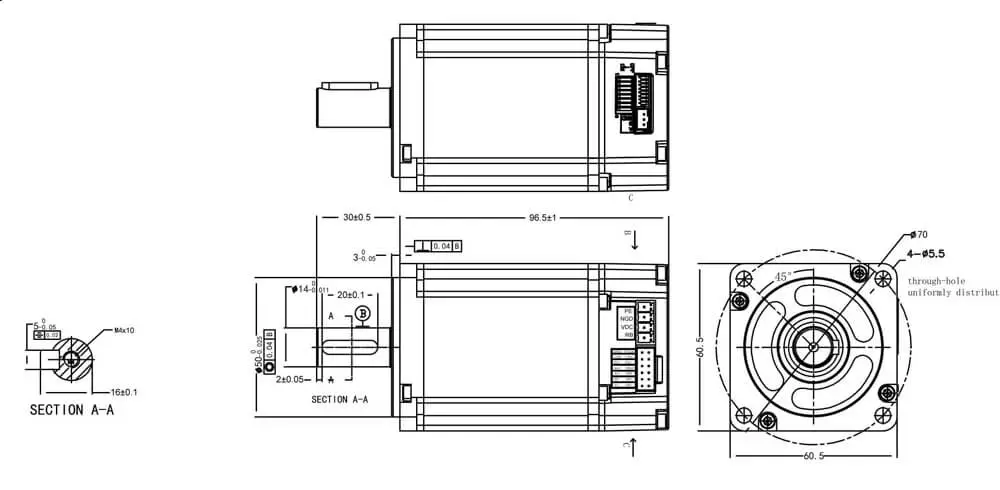

Size Drawing:
