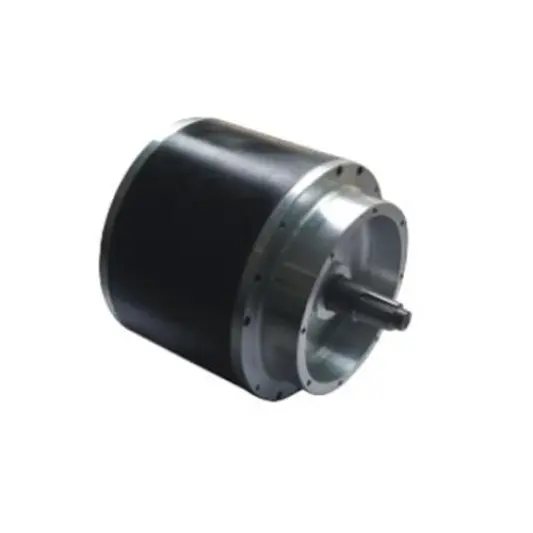

PMS175 series PMSM Motor

PMS175 series PMSM motors are designed for kinds of grinding edge machine. High efficiency of IE5 class. Excellent stator and rotor design. Super strong permanent magnet materials and imported bearings. We offer the grinding motors especial for ceramic squaring and chamfering process and the ceramic tile polishing process. Including PMSM motor and variable frequency drives (VFDs). They provide pre
Inquire Now Next Product
PMS175 series PMSM Motor

Product Description

Performance data:



Vol: 100-380V DC

Rated Speed:1000-6000RPM

Rated Power: 7.5KW-22KW

Insulation Class: H



Typical model performance



Model

Length

            Loading Performance

Voltage Range

Rated Voltage

Speed

Current

Power

Eff.



















(mm)

（VDC）

（VDC）

(RPM)

(A)

(KW)

(%)

PMS175-01

250

70-130

100

1000

93

15

95

PMS175-02

250

180-260

220

3000

42

15

94.6

PMS175-03

280

320-420

380

6000

35

22

94.5

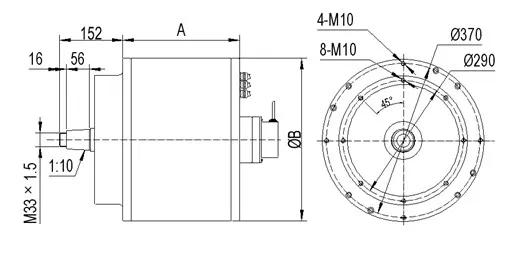

Size Drawing:
