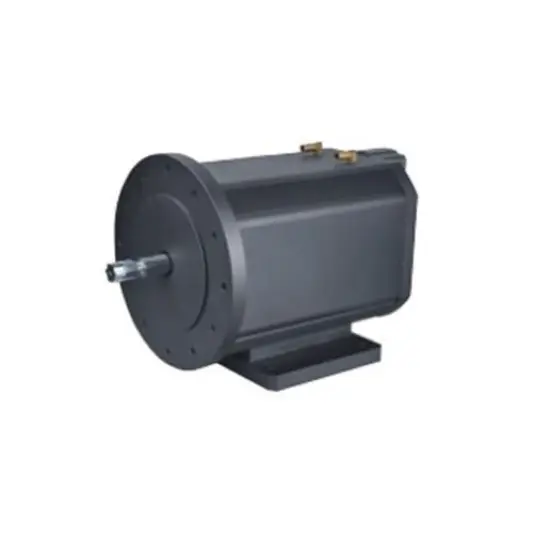

PMS155 series PMSM Motor

PMS155 series PMSM motors are designed to drive the saw blade directly for heavy duty metal cutting machine . High efficiency of IE5 class. Excellent stator and rotor design. Super strong permanent magnet materials and imported bearings. They also can be used for industrial grinding machine. Different thickness of lamination design is flexible for different power and output torque request.
Inquire Now Next Product
PMS155 series PMSM Motor

Product Description

Performance data:



Vol: 380-700V DC

Rated Speed:2500-6000RPM

Rated Power: 4KW-7.5KW

Insulation Class: H





Typical model performance



Model

Length

            Loading Performance

Voltage Range

Rated Voltage

Speed

Current

Power

Eff.



















(mm)

（VDC）

（VDC）

(RPM)

(A)

(KW)

(%)

PMS155-01

370

380-700

650

2500

97

4

94.6

PMS155-02

385

380-700

650

3000

116

6

95

PMS155-03

415

380-700

650

3000

138

7.5

95.4

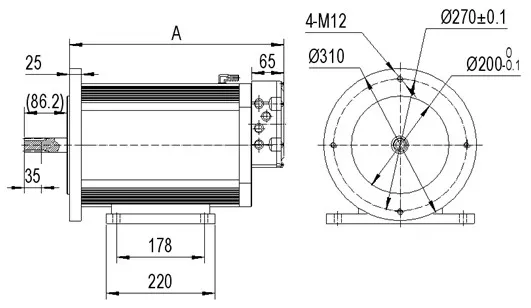

Size Drawing:
