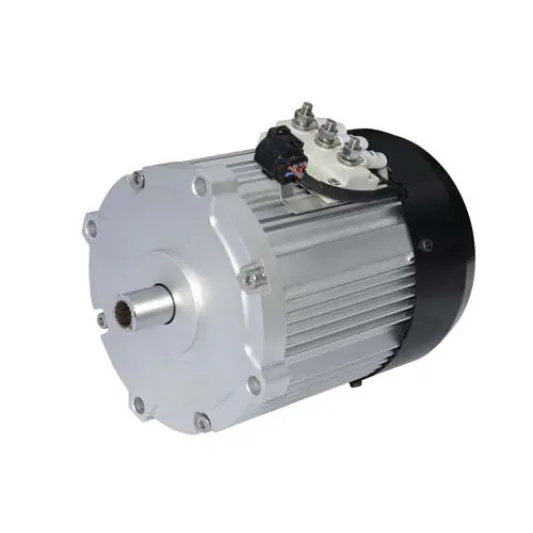

PMS100 series PMSM Motor

PMS100 series PMSM motors are designed to direct drive industrial fan, industrial pump, farm duty Axial flow fan in cattle farm, farm duty water pump in farmland irrigation. High ROI with no more other gear reducer and belt drive. Match with VFD control to get lower speed request. More high efficiency can be made depend on motor loading situation. Long time working with maintenance-free.
Inquire Now Next Product
PMS100 series PMSM Motor

Product Description

Performance data:



Vol: 48V DC

Rated Speed:800-3000RPM

Rated Power: 3KW-7.5KW

Insulation Class: H





Typical model performance



Model

Length

            Loading Performance

Voltage Range

Rated Voltage

Speed

Current

Power

Eff.



















(mm)

（VDC）

（VDC）

(RPM)

(A)

(KW)

(%)

PMS100-01

240

36-72

48

2800

114

5

91

PMS100-02

220

36-72

48

2800

70

3

90

PMS100-03

280

36-72

48

3000

168

7.5

93

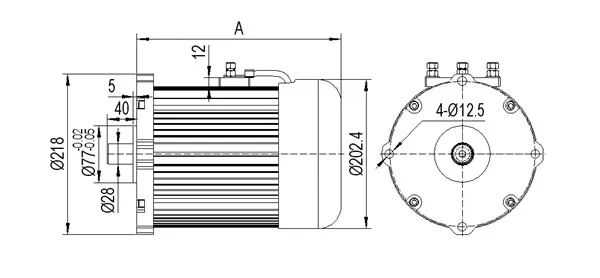

Size Drawing:
