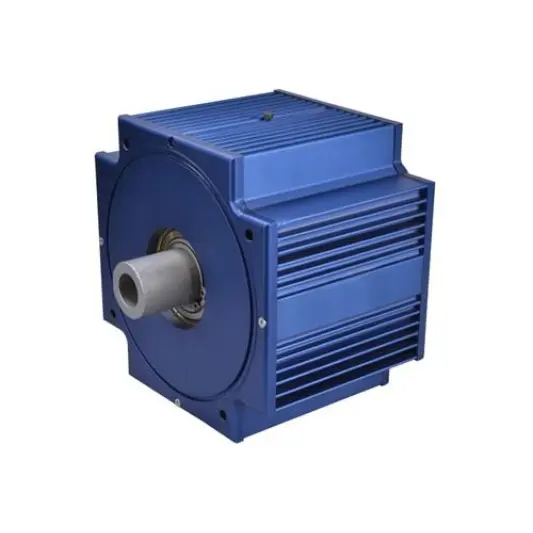

PMS132 series PMSM Motor

PMS132 series PMSM motors are designed for logistic vehicle, electrical forklift, tourism vehicle, environmental sanitation vehicle and mining machinery. High torque motor range. More smart control with VFD drive.
Inquire Now Next Product
PMS132 series PMSM Motor

Product Description

Performance data:



Vol: 288-326V DC

Rated Speed:3000-6000RPM

Rated Power: 20KW-45KW

Insulation Class: H





Typical model performance



Model

Length

            Loading Performance

Voltage Range

Rated Voltage

Speed

Current

Power

Eff.



















(mm)

（VDC）

（VDC）

(RPM)

(A)

(KW)

(%)

PMS132-01

238

280-330

326

3000

66

20

93

PMS132-02

260

280-330

326

3000

85

25

93

PMS132-03

280

280-330

288

6000

166

45

94

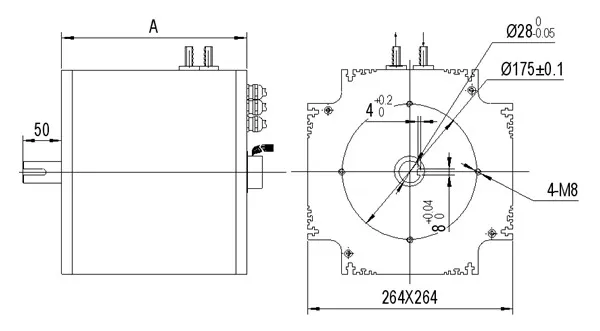

Size Drawing:
