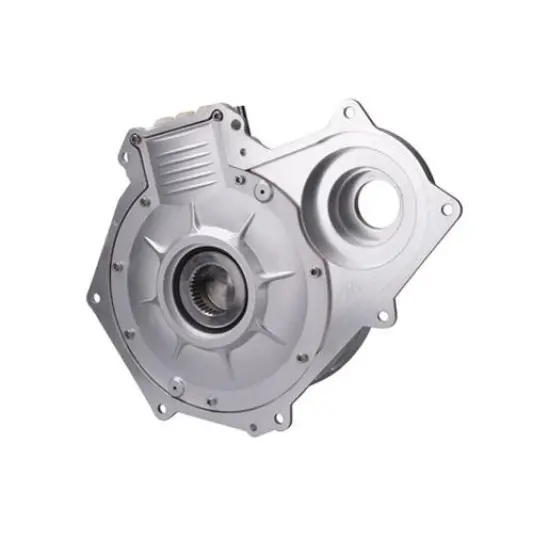

PMS125 series PMSM Motor

PMS125 series PMSM motors are designed for new energy vehicles such as urban bus, hybrid car, road construction vehicles and more. Match with VFD control. More high efficiency can be made depend on motor loading situation. Long time working with maintenance-free.
Inquire Now Next Product
PMS125 series PMSM Motor

Product Description

Performance data:



Vol: 310V DC

Rated Speed: 3000RPM

Rated Power: 10KW-15KW

Insulation Class: H







Typical model performance



Model

Length

            Loading Performance

Voltage Range

Rated Voltage

Speed

Current

Power

Eff.



















(mm)

（VDC）

（VDC）

(RPM)

(A)

(KW)

(%)

PMS125-01

151

280-340

310

3000

35

10

92

PMS125-02

161

280-340

310

3000

42

12

92

PMS125-03

171

280-340

310

3000

52.5

15

93

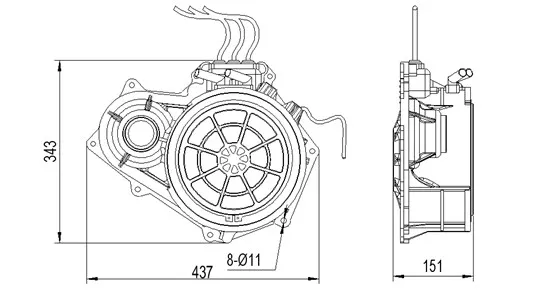

Size Drawing:
