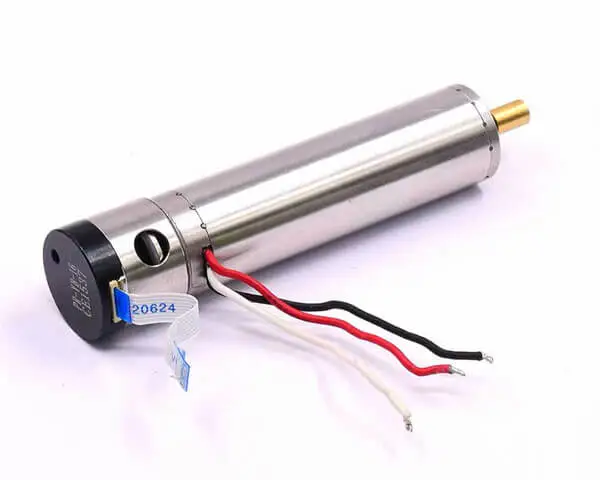

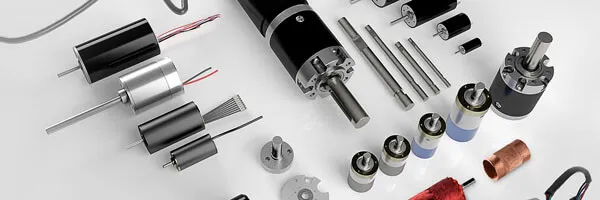

Coreless motors, also known as ironless rotor motors, are a specialized type of electric motor that eliminates the traditional laminated iron core in the rotor. Instead, they use a self-supporting coil structure, resulting in superior efficiency, reduced inertia, and faster response times. These motors are widely used in applications requiring high precision, rapid acceleration, and minimal cogging torque, such as medical devices, robotics, and aerospace systems.
This article explores the design principles, key advantages, challenges, and applications of coreless motors.

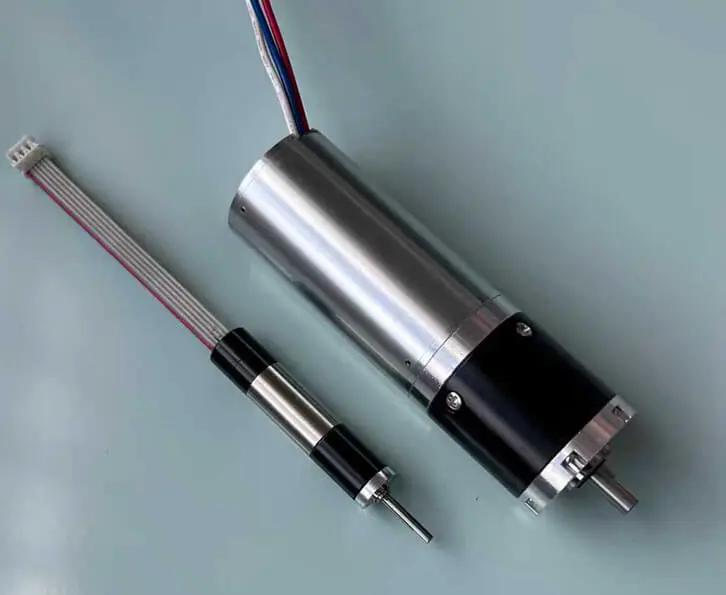

Unlike conventional motors, coreless motors remove the iron core from the rotor, relying on a self-supporting winding (often in a bell-shaped or flat disc configuration). The main components include:
Rotor (Armature): A lightweight, ironless coil structure (typically copper or aluminum windings).
Stator: Contains permanent magnets (usually high-grade rare-earth magnets like NdFeB).
Commutator & Brushes (for DC versions): Used in brushed coreless motors.
Slotless Design (for BLDC versions): Eliminates cogging torque in brushless variants.

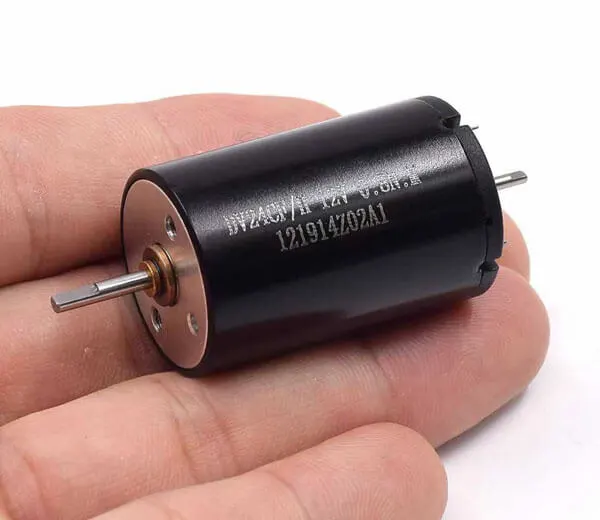

Coreless motors operate based on Lorentz force, where current-carrying conductors in a magnetic field generate motion. Since there is no iron core:
• Magnetic flux interacts directly with the windings, reducing energy losses.
• No hysteresis or eddy current losses (common in iron-core motors).
• Lower inductance allows for faster current response.
|
Feature |
Benefit |
|
No Iron Core |
Eliminates eddy current & hysteresis losses → Higher efficiency (up to 90%+). |
|
Low Rotor Inertia |
Enables extremely fast acceleration/deceleration (ideal for servo systems). |
|
Minimal Cogging Torque |
Smooth operation, crucial for precision applications (e.g., medical robotics). |
|
Compact & Lightweight |
Ideal for portable devices (drones, wearables, etc.). |
|
Low Vibration & Noise |
Suitable for high-end audio equipment and sensitive instrumentation. |
Despite their advantages, coreless motors present some engineering challenges:
• Without an iron core, heat dissipation relies entirely on the windings and housing.
• Overheating can degrade insulation or demagnetize permanent magnets.
Solution: Advanced cooling methods (forced air, liquid cooling, or thermally conductive potting).
• The self-supporting coil is more fragile than iron-core rotors.
• High-speed operation may cause deformation or vibration.
Solution: Reinforced winding techniques (epoxy resin coating, carbon fiber support).
• Precision winding processes increase production costs.
Solution: Automated winding machines and optimized manufacturing techniques.
Coreless motors are preferred in industries where high efficiency, precision, and fast response are critical:
Medical Devices (surgical robots, infusion pumps, prosthetics)
Aerospace & Drones (lightweight actuators, gimbal systems)
Robotics & Automation (high-speed pick-and-place machines)
Consumer Electronics (camera autofocus, haptic feedback devices)
High-End Audio (turntables, speaker drivers)
Advanced Materials: Use of graphene-coated windings for better heat dissipation.
Additive Manufacturing: 3D-printed lightweight motor structures.
Integration with AI: Smart torque control for robotics and prosthetics.
Wireless Power Transfer: Coreless designs for contactless charging systems.
Coreless motors represent a high-performance alternative to traditional iron-core motors, offering superior efficiency, rapid response, and smooth operation. While they present challenges in thermal management and mechanical robustness, advancements in materials and manufacturing are expanding their applications across industries.
As demand grows for miniaturized, energy-efficient, and high-precision motion systems, coreless motor technology will continue to evolve, playing a key role in next-generation robotics, medical devices, and smart electronics.
Key Takeaways
✔ No iron core → Higher efficiency, lower inertia, no cogging.
✔ Best for precision, speed, and lightweight applications.
✔ Challenges: Heat dissipation, mechanical strength, cost.
✔ Future trends: AI integration, advanced materials, 3D printing.
