Designing an efficient and reliable pool pump motor requires careful consideration of hydraulic requirements, motor type selection, power electronics, and thermal management. Below is a step-by-step guide for designing a Permanent Magnet Synchronous Motor (PMSM) or Brushless DC (BLDC) motor for pool pump applications.
Before designing the motor, establish key specifications:
|
Parameter |
Typical Range for Pool Pumps |
|
Power |
0.5 HP – 3 HP (0.37 kW – 2.2 kW) |
|
Voltage |
115V/230V (Single/Three-phase) |
|
Speed |
1,750 – 3,500 RPM (Variable-speed preferred) |
|
Flow Rate |
40 – 100 GPM (Gallons Per Minute) |
|
Head Pressure |
10 – 50 ft (3 – 15 m) |
|
Efficiency |
> 90% (IE4/IE5 standards) |
|
Duty Cycle |
Continuous (24/7 operation possible) |
Pool pumps traditionally used induction motors, but modern designs favor BLDC or PMSM Motors for:
✔ Higher efficiency (up to 95%)
✔ Variable-speed control (energy savings)
✔ Lower maintenance (no brushes, longer life)
|
Feature |
BLDC |
PMSM |
|
Control Complexity |
Simpler (Trapezoidal) |
More complex (FOC/Sinusoidal) |
|
Efficiency |
Slightly lower (~90%) |
Higher (~95%) |
|
Torque Ripple |
Higher (due to commutation) |
Lower (smooth operation) |
|
Cost |
Lower |
Slightly higher |
Recommendation:
• For low-cost, simple control → BLDC
• For high efficiency, quiet operation → PMSM

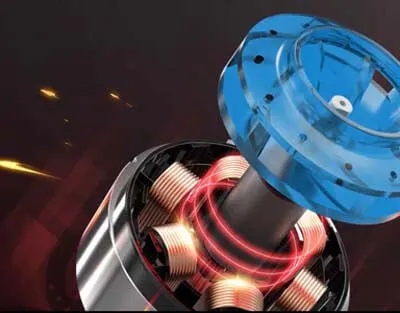

• Stator Core: Laminated silicon steel (M19/M47) to reduce eddy losses.
• Winding Type:
♦ BLDC: Concentrated windings (easier manufacturing)
♦ PMSM: Distributed windings (better sinusoidal back-EMF)
• Slot-Pole Combination:
♦ Common choices: 12-slot/10-pole, 24-slot/16-pole
♦ Higher poles → Smoother torque, but higher switching losses.
• Magnet Type:
♦ Ferrite (cheaper, lower performance)
♦ NdFeB (higher energy density, better for compact designs)
• Magnet Arrangement:
♦ Surface-mounted (SPMSM) – Easier manufacturing
♦ Interior (IPMSM) – Higher reluctance torque, better for high-speed
• Typical air gap: 0.5 – 1.0 mm
• Smaller gap → Higher torque, but tighter manufacturing tolerances.

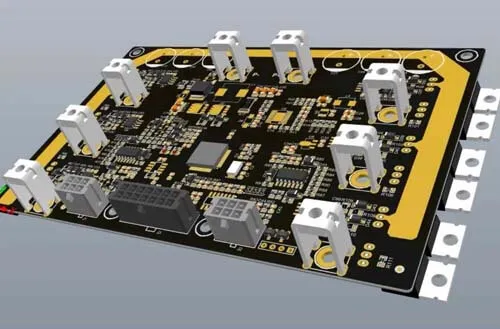

• Topology: 3-phase full-bridge inverter
• Switching Devices:
♦ MOSFETs (for < 1 kW, low voltage)
♦ IGBTs (for > 1 kW, high voltage)
• PWM Frequency: 8 – 20 kHz (higher → quieter, but more losses)
|
Control Method |
BLDC |
PMSM |
|
Commutation |
Hall sensors (6-step) |
Encoder/FOC (Field-Oriented Control) |
|
Speed Control |
Simple PWM |
Sensorless FOC (better efficiency) |
|
Torque Control |
Limited |
Precise (sinusoidal current) |
Recommendation:
• For BLDC: Use Hall-effect sensors + trapezoidal control (low-cost).
• For PMSM: Use sensorless FOC (better efficiency, quieter).

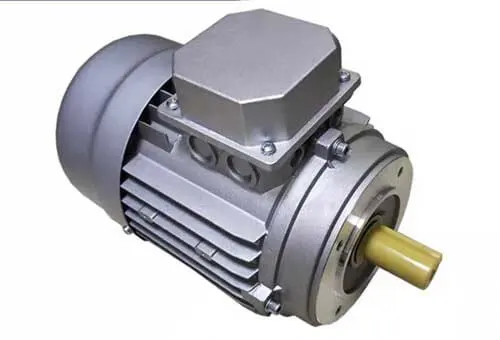

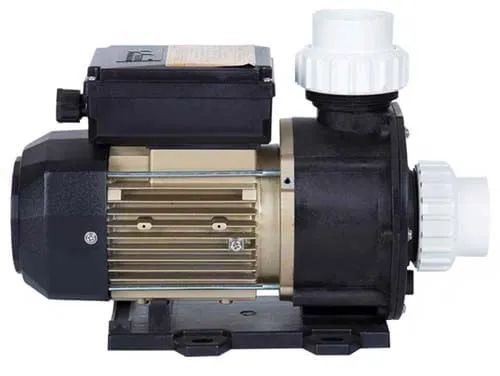

• Passive Cooling: Aluminum housing with fins (for < 1.5 HP).
• Active Cooling: Fan-assisted (for > 1.5 HP or continuous duty).
• Bearings: Sealed ball bearings (waterproof, long life).
• Shaft Material: Stainless steel (corrosion-resistant).
• IP Rating: IP55 (splash-proof) or IP68 (fully submersible)
• Corrosion Resistance: Epoxy-coated windings, stainless steel hardware.
Before mass production, verify:
✅ No-load test (back-EMF, cogging torque)
✅ Load test (efficiency, torque-speed curve)
✅ Thermal test (temperature rise at full load)
✅ Water ingress test (IP rating validation)
• Cost Optimization:
♦ Use ferrite magnets if NdFeB is too expensive.

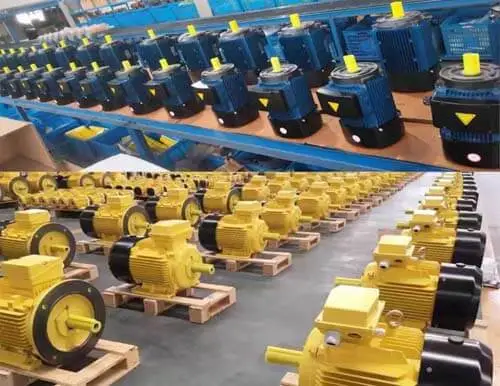

♦ Mass production reduces PCB/motor costs.
• Regulatory Compliance:
♦ UL 1081 (Pool Pump Standard)
♦ ENERGY STAR (for variable-speed pumps)
Designing a high-efficiency PMSM pool pump motor or BLDC involves:
► Defining hydraulic & electrical specs
► Choosing between BLDC (simpler) or PMSM (higher efficiency)
► Optimizing stator/rotor design
► Implementing FOC for PMSM (or trapezoidal for BLDC)
► Ensuring thermal & waterproof reliability
⇒ More sensorless FOC adoption (cost reduction)
⇒ Higher integration with IoT (smart pump control)
⇒ Wider use of SiC/GaN inverters (higher efficiency)
