Heavy-Duty Linear Actuator Design Guide



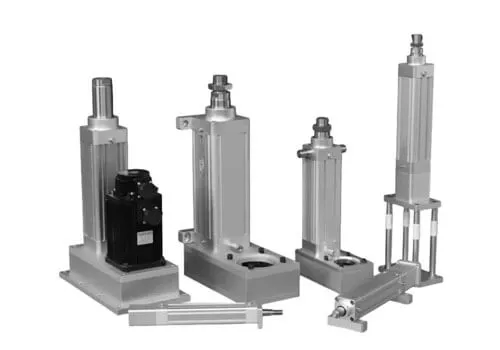

Unlike standard actuators, heavy-duty linear actuators are built with reinforced materials, high-power drive systems, and enhanced protection features to ensure reliability under severe operating conditions. They are designed to handle extreme loads, harsh environments, and demanding industrial applications.





1. Key Specifications for Heavy-Duty Actuators



Parameter	Typical Range	Extreme Duty
Load Capacity	1,000–50,000 lbs	50,000–200,000+ lbs
Stroke Length	6–120 inches	Custom >120"
Speed	0.1–2 in/sec (adjustable)	Hydraulic: 4–12 in/sec
Duty Cycle	Continuous (100% ED)	Impact-rated
Protection	IP66/IP69K	Explosion-proof (ATEX)



2. Top Heavy-Duty Actuator Types



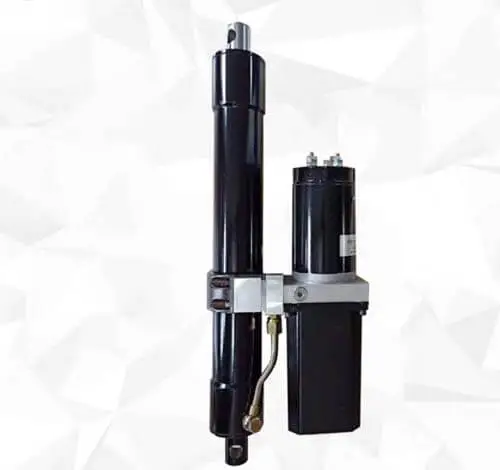

A. Hydraulic Cylinders



Best for: Ultra-high force (200,000+ lbs), harsh environments

Pros:

Unlimited force with proper pump sizing

Handles extreme shock loads

Minimal maintenance with proper seals

Cons:

Requires hydraulic power unit

Potential fluid leakage

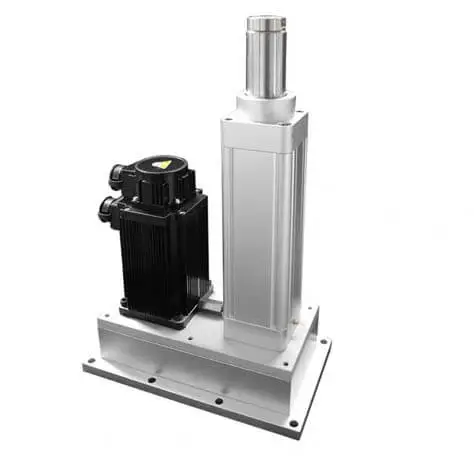

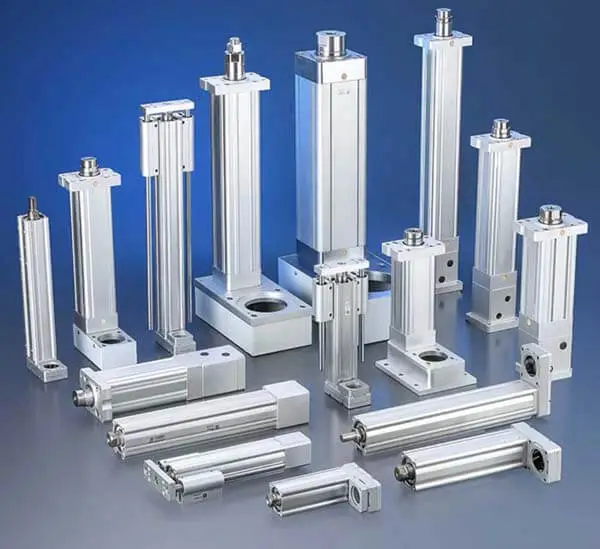

B. Electric Ball Screw Actuators



Best for: 5,000–50,000 lbs, precision control ( high force ball screw actuators)

Pros:

Energy efficient

Precise positioning (±0.001")

Clean operation (no hydraulics)

Cons:

Lower force than hydraulic

Requires robust motor/gearbox



C. ACME Screw Actuators



Best for: 10,000–100,000 lbs where self-locking is critical

Pros:

Will hold position without power

More economical than ball screws

Cons:

Lower efficiency (40-60%)

Faster wear under high loads

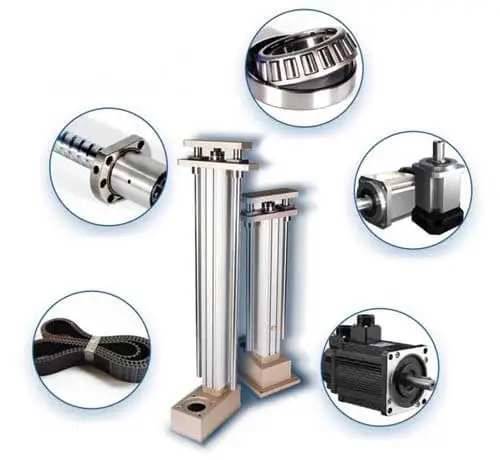

3. Critical Design Components



A. Structural Elements

Housing: Cast steel or extruded aluminum with 1/2"+ wall thickness

Rod: Hardened stainless steel (17-4PH or 316SS)

Bearings: Oversized tapered roller or hydrostatic bearings



B. Drive Systems

Gearboxes: Planetary gearhead (5:1 to 100:1 ratio)

Motors:

3-phase AC (10–100 HP)

Brushless DC (for servo control)

Hydraulic motors (for cylinders)



C. Protection Systems

Wipers: Multi-labyrinth seals with grease purge

Cooling:

Air blast for electric

Oil coolers for hydraulic

Overload:

Pressure relief valves (hydraulic)

Torque limiters (electric)



4. Industry-Specific Applications

A. Industrial Presses

Requirements: 50–200 tons, 0.001" repeatability

Solution: Servo-electric ball screw with load cell feedback



B. Mining Equipment

Requirements: 100,000+ lbs, IP69K, explosion-proof

Solution: Hydraulic cylinder with accumulators



C. Offshore Machinery

Requirements: Corrosion resistance, 20-year service life

Solution: Duplex stainless steel hydraulic actuator



5. Performance Comparison



Feature	Hydraulic	Electric Ball Screw	ACME Screw
Max Force	Unlimited	~50,000 lbs	~100,000 lbs
Precision	Moderate	Excellent	Good
Efficiency	60-70%	80-90%	40-60%
Maintenance	Medium	Low	Medium
Footprint	Large	Compact	Moderate

6. Leading Manufacturers

Hydraulic: Bosch Rexroth, Parker Hannifin, Eaton

Electric: Thomson, Rollon, PJM( Power Jack Motion)

Extreme Duty: Helac, Hydratech, Pacoma



7. Selection Checklist

   ► Define peak & continuous load requirements

   ► Determine necessary stroke length and speed

   ► Evaluate environmental conditions (dust, temp, etc.)

   ► Choose between position holding vs. dynamic control

   ► Select appropriate feedback system (encoder, LVDT)

   ► Verify duty cycle and expected service life



For critical applications, always:

   ► Include 25-50% safety factor on load ratings

   ► Specify redundant sealing for harsh environments

   ► Consider fail-safe braking/locking mechanisms



Would you like us to develop specific calculations for your load case or provide CAD integration recommendations? Let us know your request.
