If you are going to use actuators to lift a heavy skylight, you can offset the weight of the skylight with gas shocks, torsion springs or even external counterweights. Some of our customers have used gas shocks successfully (the type used for the rear door of a minivan), reducing the amount of lifting force to just a push of a finger.
You can use the standard series of 24 V or 240V electric window openers (with motorized actuators) for opening and closing vents, windows, skylights, and shutters among others. This product can be controlled by a simple switch or with remote controls (optional). The unit can exert a push/pull force of approximately 100 lbs. A sensor will automatically stop the actuator if it hits an obstacle. They also can be used with louvers, torque arm systems, and flexible cable systems. They also have a simple switch adjustment.

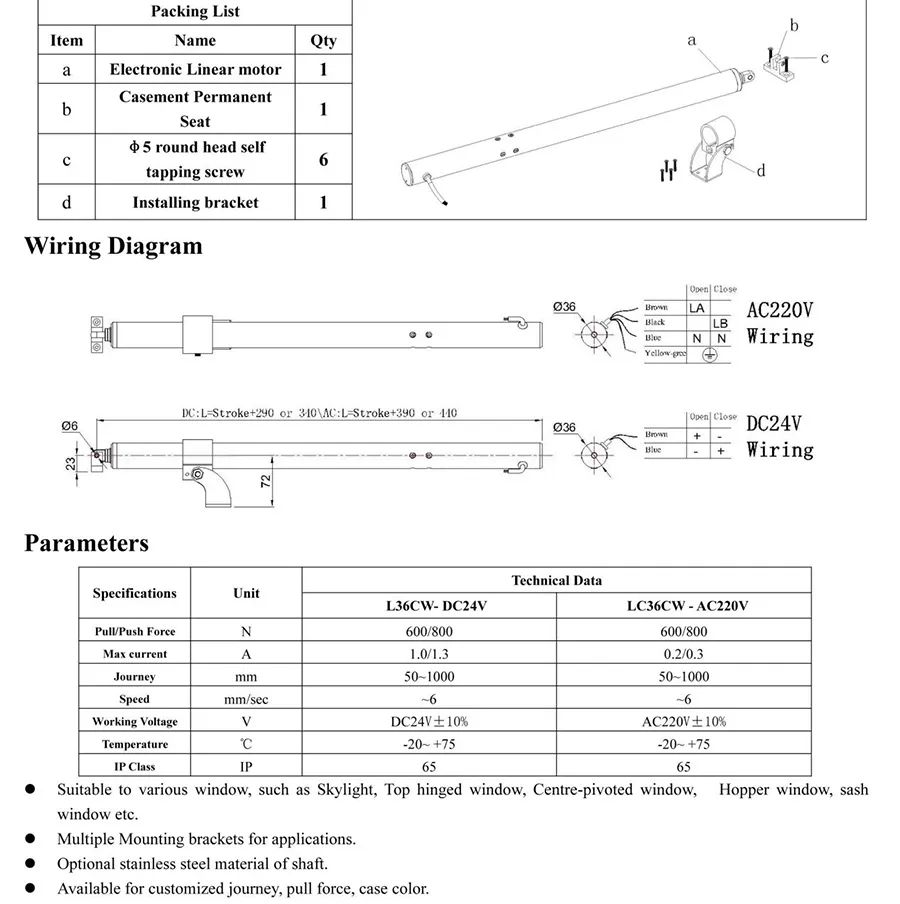

1. Prepare the packing components and confirm the wire connection, parameters:

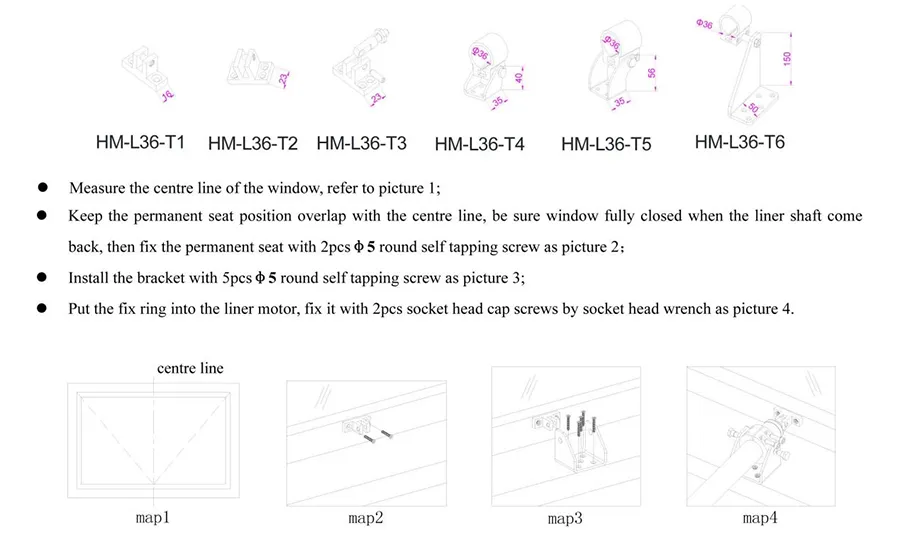

2. Prepare the accessories to install

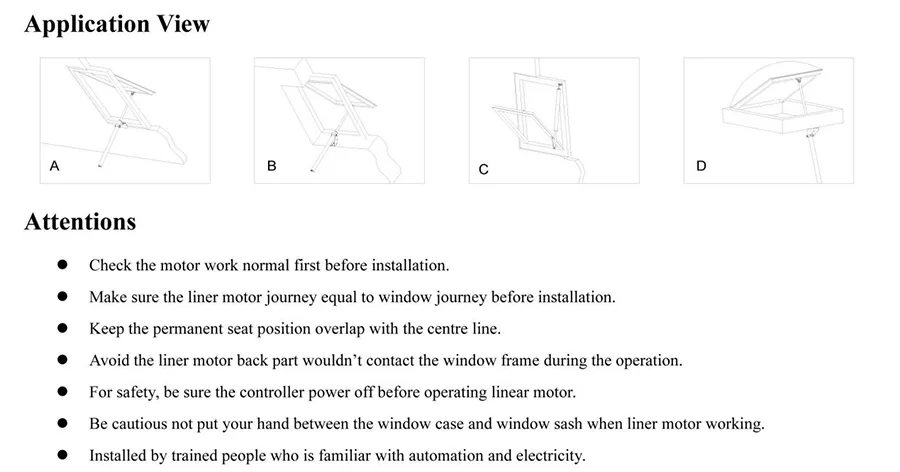

3. Different application and attentions
These window openers have a good performance of linear motion and a simple limit switch control. We also have window chain openers and screw window openers type for your project to select. Tailor-made window motor is welcome.
