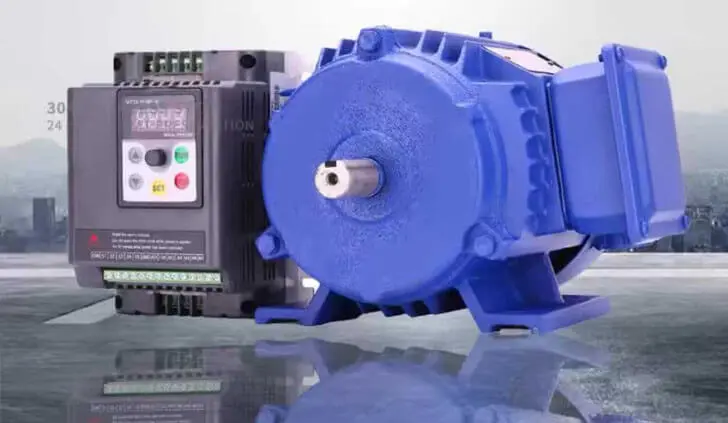

A Variable Frequency Drive (VFD) is a device that converts fixed-frequency (utility) power into adjustable-frequency power. Different countries use different power frequencies—typically 50Hz or 60Hz. In motor applications, VFDs are widely used to control motor speed, improve efficiency, or adapt to varying load conditions.
Since VFDs serve as an intermediary between the power supply and the motor, proper matching between the motor and the VFD is crucial. Different motor load characteristics require different VFD performance specifications.
1. Voltage-Frequency Relationship in VFDs
For induction motors, torque is generated by the interaction between magnetic flux and rotor current. When operating below the motor’s rated frequency:
• If the voltage remains unchanged, the magnetic flux may saturate, leading to overheating and potential motor burnout.
• Therefore, voltage must be reduced proportionally with frequency to maintain constant flux (V/F control).
• This method is commonly used in fan and pump applications, where load torque varies with speed.
2. Current Variations Under Different Operating Modes
For line-frequency motors:
• If voltage drops below the rated value while maintaining the same power output, current increases significantly, often causing winding burnout—especially in temporary power setups.
For VFD-powered motors:
• Constant Power Mode (low-speed operation):
If the motor must deliver the same power at lower speeds, current increases, posing a risk of overheating.
• Constant Torque Mode:
Current remains relatively stable since torque demand does not change drastically.
3. Testing a 60Hz Motor with 50Hz Power Supply
Many new testing facilities are equipped with variable-frequency power supplies, allowing motors to be tested at their rated frequency. However, older testing equipment or repair shops may lack this capability.
Solution for testing a 60Hz motor with 50Hz power:
• Since frequency affects motor impedance, voltage must be adjusted to avoid excessive current.
• Apply a reduced test voltage calculated as:
Test Voltage=Rated Voltage/1.2
(Example: For a 460V, 60Hz motor, test at ~383V, 50Hz to prevent magnetic saturation.)
1. Electrical Noise & EMI
High-frequency switching in VFDs can cause electromagnetic interference (EMI), affecting nearby sensitive equipment.
Solutions: Use shielded cables, proper grounding, and EMI filters.
2. Motor Insulation Stress
VFDs produce high-voltage spikes (dv/dt), which can degrade motor insulation over time.
Mitigation: Use VFD-rated motors with reinforced insulation or install output filters/chokes.
3. Bearing Currents & Damage
High-frequency currents can induce shaft voltages, leading to bearing fluting and premature failure.
Prevention: Use insulated bearings or shaft grounding rings.
4. Overheating at Low Speeds
Since motor cooling fans lose efficiency at reduced speeds, forced ventilation may be necessary for prolonged low-speed operation.
5. Harmonic Distortion
VFDs introduce harmonics into the power system, potentially affecting other connected devices.
Solution: Install harmonic filters or active front-end (AFE) drives.
While VFDs offer flexible speed control and energy savings, improper application can lead to motor damage, inefficiency, and system instability. Proper voltage-frequency coordination, motor-VFD compatibility, and mitigation of electrical disturbances are essential for reliable operation.
For 60Hz motors tested on 50Hz power, voltage derating (V/1.2) is critical to avoid excessive current and magnetic saturation. Additionally, addressing EMI, insulation stress, bearing currents, and cooling challenges ensures long-term motor reliability in VFD-driven systems.
