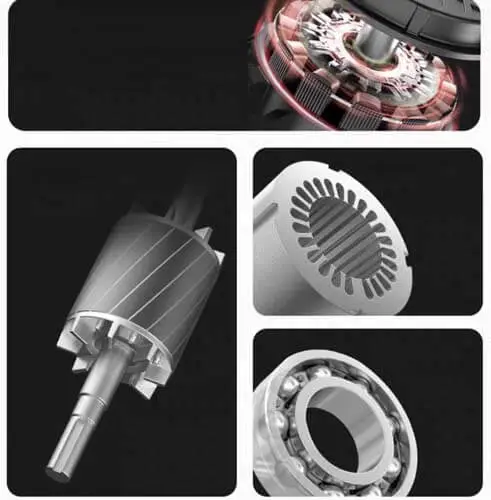

The lifespan of squirrel-cage three-phase induction motors is influenced by multiple factors, with windings and bearings being the core components that determine longevity. This article systematically explores methods to extend motor lifespan by analyzing the failure mechanisms and limiting factors of these two critical components, combined with maintenance practices.
Voltage fluctuations:
Chronic overvoltage accelerates insulation aging.
Undervoltage causes overheating due to excessive current.
Harmonic interference:
Inverter or grid harmonics lead to winding overheating and increased dielectric losses.
Frequent starts/stops:
Starting current (5–7× rated current) causes winding temperature rise and mechanical stress.
Load characteristics:
Overloading, vibration, and unbalanced loads accelerate bearing wear and shaft bending.
Installation accuracy:
Misalignment, loose foundations, or improper coupling induce abnormal bearing forces.
Temperature:
For every 10°C rise in ambient temperature, insulation life halves (Arrhenius law).
Humidity & dust:
Moisture causes winding short circuits; dust ingress accelerates bearing wear.
Lubrication failure (dry bearing friction), carbon buildup, or cooling system blockages.
(1). Insulation Aging Mechanisms
Thermal aging: Prolonged high temperatures (>130°C) carbonize insulation materials (e.g., polyester, epoxy).
Electrical aging: Partial discharge erodes insulation, forming conductive paths.
Mechanical stress: Frequent starts/stops or vibration abrade insulation layers.
(2). Typical Failure Symptoms
Early signs: Insulation resistance drop (<1 MΩ), localized overheating.
Severe faults: Turn-to-turn shorts (current imbalance), ground faults (tripping leakage protection).
(3). Winding Lifespan Estimation
Per IEC 60034-18, Class B insulation (130°C) lasts ~20 years at rated temperature rise (80K). Each 10°C over limit reduces lifespan by 50%.
(1). Failure Mechanisms
Fatigue spalling: Repeated stress on rolling elements/races (Lundberg-Palmgren theory).
Lubrication failure: Grease oxidation, contamination, or insufficient replenishment.
Current corrosion: Shaft currents (especially in VFD-driven motors) cause electric pitting.
(2). Typical Failure Symptoms
Early stage: Abnormal noise (high-frequency "squealing"), temperature rise (>70°C).
Advanced stage: Increased vibration (acceleration >10 m/s²), axial play.
(3). Bearing Lifespan Calculation
Basic rating life formula:
C: Basic dynamic load rating; P: Equivalent dynamic load.
Actual lifespan is typically 30–50% of calculated value (affected by installation/lubrication).
Optimize operating conditions:
Control ambient temperature (forced air cooling), avoid sustained overload (load ratio ≤90%).
Use soft starters/VFDs to reduce inrush current.
Insulation protection:
Regularly measure insulation resistance (500V megger, ≥1 MΩ/kV required).
For humid environments, use vacuum impregnation or Class H insulation (180°C).
Condition monitoring:
Infrared thermography for hotspots (>5°C differential warrants inspection).
Online partial discharge monitoring (PD >20 pC triggers alerts).
Precision maintenance:
Replenish grease periodically (lithium-based, fill 1/3–1/2 of bearing cavity).
Use insulated bearings or shaft grounding to eliminate shaft currents (<0.5V).
Mechanical protection:
Ensure alignment precision (laser alignment, ≤0.05mm deviation).
Install vibration-damping bases or flexible couplings.
Degradation warning:
Vibration monitoring (ISO 10816, Grade 4 limit: 4.5 mm/s).
Acoustic emission for early spalling detection (>5 kHz characteristic frequency).
Proper sizing: Avoid oversizing; reserve 10–15% power margin.
Scheduled maintenance: Inspect insulation, bearing play, and lubrication every 6 months.
Environmental control: Use dust covers, dehumidifiers, and avoid water exposure.
Failure analysis: Maintain operation logs (temperature, vibration history) for lifespan prediction.
The lifespan of squirrel-cage motors hinges on winding insulation and bearing reliability. Optimizing operating conditions, implementing precision maintenance, and adopting condition monitoring can significantly extend service life. For critical equipment, integrate Reliability-Centered Maintenance (RCM) to transition from reactive to predictive maintenance.
