Motor Design Guide for Cleaning Equipment Applications

1. Motor Application Characteristics in Cleaning Equipment





1.1 Typical Application Scenarios

   • Household Cleaning Appliances: Vacuum cleaners, robotic sweepers, window-cleaning robots

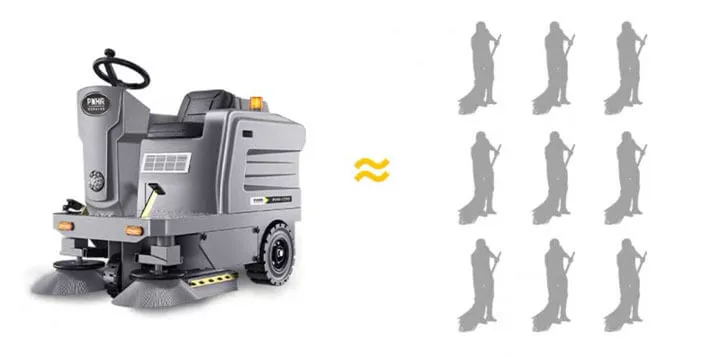

   • Commercial Cleaning Equipment: Floor scrubbers, street sweepers, high-pressure washers

   • Industrial Cleaning Systems: Pipeline cleaning machines, automated tank washers



1.2 Special Operating Requirements

   • Dusty Environments: Dust-proof design (IP5X or higher)

   • Humid Conditions: Waterproof rating (IPX4-IPX7, depending on application)

   • Vibration & Shock: Frequent start-stop cycles and impacts in mobile devices

   • Variable Loads: From light-duty operation to sudden heavy loads



2. Motor Selection Strategy





2.1 Comparison of Main Electric Motor Types



Motor Type	Advantages	Disadvantages	Typical Applications

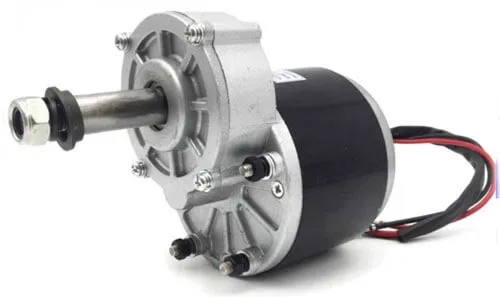

Brushed DC	Low cost, simple control	Short lifespan, maintenance	Low-end vacuum cleaners
BLDC	High efficiency, long life	Complex control	Robotic sweepers, premium vacuums
AC Induction	Simple & reliable	Lower efficiency	Commercial floor scrubbers
Stepper	Precise positioning	Limited torque	Cleaning arm positioning



2.2 Power Range Reference

   ► Small devices: 20-200W (household robots motor)

   ► Medium devices: 200-1000W (commercial scrubbers motor)

   ► Large equipment: 1-10kW (industrial sweepers motor)





3. Key Design Considerations



3.1 Dust & Water Protection

   • Sealed bearings: Prevent dust ingress

   • Fully enclosed housing: IP54/IP65 protection

   • Special coatings: Resistant to chemical cleaners

   • Labyrinth structure: Blocks dust penetration



3.2 High-Efficiency Design

   • Low-loss silicon steel: Reduces core losses

   • Optimized windings: High slot-fill design

   • Temperature monitoring: Built-in PT100 sensors



3.3 Noise Reduction Techniques

   • Magnetic circuit optimization: Minimizes cogging torque

   • Dynamic balancing: G2.5 grade or higher

   • Vibration damping: Rubber cushion mounts



4. Design Highlights for Specific Applications

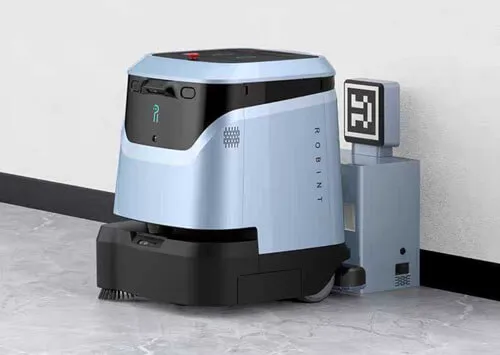

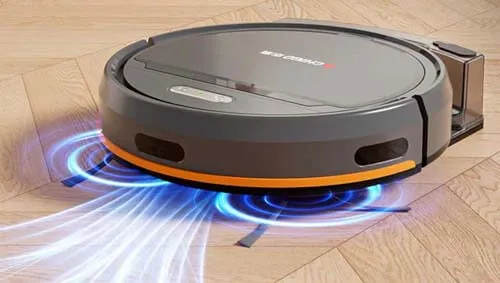

4.1 Robotic Sweeper Motors

   • Dual-motor system: Separate drive and brush control

   • Low-power design: Optimized battery life

   • Drop protection: Fast current detection

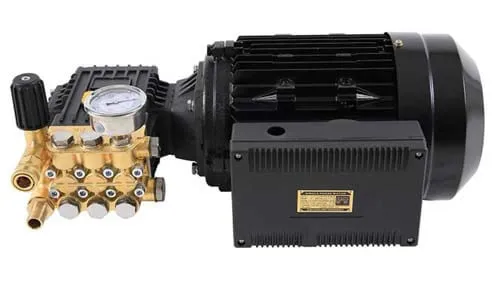

4.2 High-Pressure Washer Motors

   • High starting torque: Direct-drive plunger pumps

   • Waterproofing: IPX7 protection

   • Overheat protection: Dual thermal switches



4.3 Window-Cleaning Robot Motors

   • Safety redundancy: Dual braking system

   • Precise control: Encoder feedback

   • Vacuum adhesion: Power-off self-locking



5. Smart Control Trends





5.1 Advanced Control Features

   • Load adaptation: Real-time current-based adjustment

   • Energy optimization: Dynamic power matching

   • Predictive maintenance: Vibration & temperature analysis



5.2 IoT Integration

   • Cloud-based performance monitoring

   • Remote firmware updates

   • Inter-device coordination



6. Testing & Certification Standards





6.1 Reliability Testing

   • 500-hour continuous operation in dusty environments

   • Humidity cycling tests

   • Mechanical shock (50G, 11ms)



6.2 Performance Testing

   • Energy efficiency validation (IE3/IE4)

   • Noise testing (<65dB typical)

   • Accelerated lifespan testing (3x rated load)



7. Compliance Requirements



Household appliance safety standards (IEC/EN 60335)

EMC certification

Regional energy efficiency labels



8. Cost Optimization Approaches



   ► Design simplification for mass production

   ► Localized supply chain development

   ► Modular platform design



Note: Actual designs should be tailored to specific cleaning equipment requirements, budget constraints, and performance targets. FMEA analysis is recommended to identify critical failure modes and implement preventive measures.
