PMSM Motor Design for Elevator Traction Systems

1. Introduction

Permanent Magnet Synchronous Motors (PMSMs) are increasingly used in elevator traction systems due to their high efficiency, compact size, and superior torque performance. Unlike traditional induction motors, PMSMs offer precise speed control, energy savings, and smoother operation, making them ideal for modern elevator applications.

2. Key Design Considerations for Elevator Traction PMSMs

A. Electromagnetic Design

   • Permanent Magnet (PM) Selection

      ► Rare-earth magnets (e.g., NdFeB) for high magnetic flux density.

      ► Optimized magnet arrangement (SPM or IPM) for torque ripple reduction.

   • Stator Winding Configuration

      ► Distributed windings for smoother torque output.

      ► High slot-fill factor to improve power density.

   • Air Gap Optimization

      ► Minimized air gap to enhance magnetic coupling efficiency.

B. Thermal Management

   • Cooling Methods

      ► Natural convection (for low-power elevators).

      ► Forced air/liquid cooling (for high-speed & heavy-load elevators).

   • Temperature-Resistant Materials

      ► High-grade insulation (Class H or F) for winding protection.

      ► Heat-resistant magnets to prevent demagnetization.

C. Structural & Mechanical Design

   • Rotor Construction

      ► Interior Permanent Magnet (IPM) for robustness and high-speed operation.

      ► Surface-mounted PM (SPM) for simplicity and cost-effectiveness.

   • Bearing & Shaft Design

      ► High-precision bearings for minimal vibration.

      ► Reinforced shaft to handle dynamic loads.

D. Control & Drive System Integration

   • Field-Oriented Control (FOC)

      ► Ensures smooth torque and speed regulation.

      ► Reduces noise and jerk during elevator starts/stops.

   • Regenerative Braking

      ► Recovers energy during descent, improving efficiency.

   • Sensorless Control (Optional)

      ► Eliminates encoder dependency for maintenance reduction.

3. Advantages of PMSM in Elevator Traction

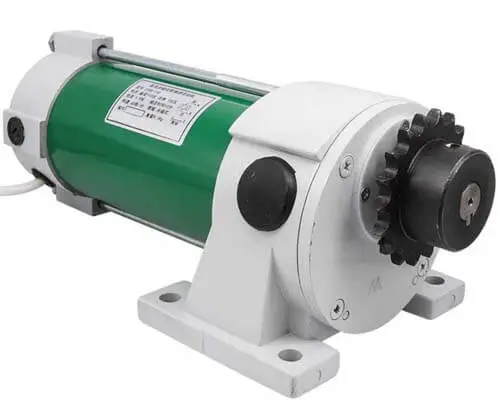

Traditional Induction Motor as following:

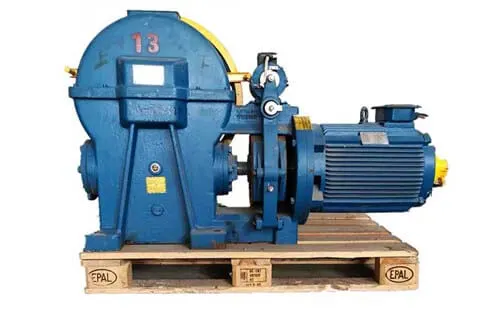

Traditional Induction Motor with gearbox as following:

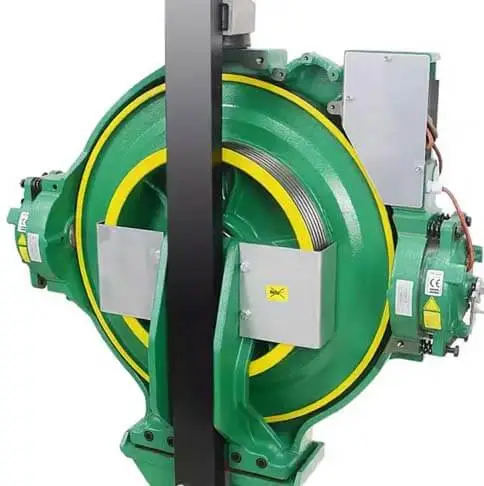

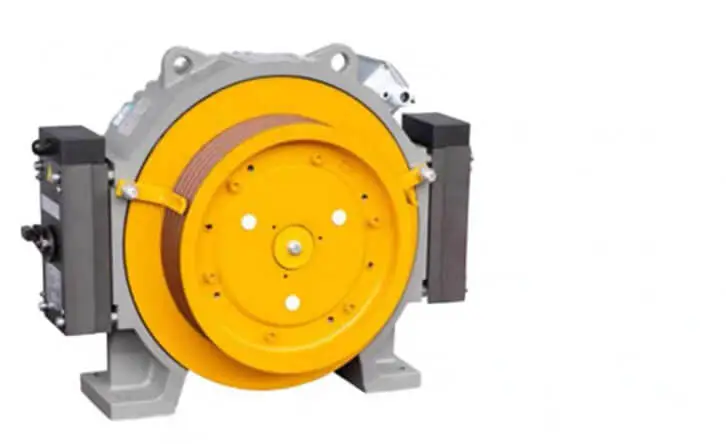

PMSM Traction Motor advantage: Direct drive with no worm gear. More high efficiency. Comparison table below:

4. Application in Modern Elevator Systems

   ♦ High-Speed Elevators (>5 m/s) – Requires high torque & dynamic response.

   ♦ Machine-Room-Less (MRL) Elevators – Compact PMSM fits into tight spaces.

   ♦ Energy-Efficient Buildings – Regenerative braking reduces grid power consumption.

   ♦ Smart Elevators – IoT-enabled PMSMs allow predictive maintenance.

5. Challenges & Future Trends

   • Cost of Rare-Earth Magnets → Development of ferrite-based PMSMs.

   • Heat Dissipation in High-Load Scenarios → Advanced liquid cooling techniques.

   • Integration with AI-Based Predictive Maintenance → Real-time motor health monitoring.

With advancements in material science and motor control algorithms, PMSMs are set to dominate the elevator industry, offering higher efficiency, reliability, and sustainability. Would you like a deeper dive into any specific aspect (e.g., control algorithms, magnet optimization)? Contact with our PMSM engineer team now.
