How to Select the Right Electric Motor for Woodworking Machinery

Choosing the appropriate motor for woodworking equipment requires a comprehensive evaluation of machine type, load characteristics, operating environment, and control requirements. Below is a systematic selection guide:



1. Matching Motors to Woodworking Machine Types

(1) Basic Processing Equipment

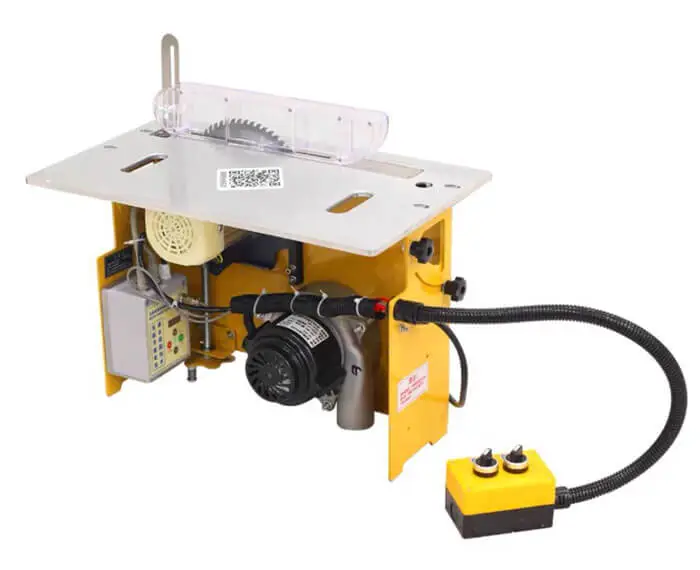

   • Circular Saws/Band Saws/Panel Saws





      ► Key Requirements: High starting torque, instant overload capacity

      ► Recommended Motors:





        ♦ Standard circular saw: 4-pole AC induction motor (IE2/IE3 series motor)

        ♦ Industrial sawing machines: Inverter-duty motor (e.g., YZP series) + vector drive (enables soft start & speed adjustment)



   • Planers/Thicknessers



      ► Key Requirements: Constant load, low vibration

      ► Recommended Solutions:

        ♦ Small manual planer: Single-phase capacitor-run motor (220V)

        ♦ Auto-feed thicknesser: Three-phase induction motor (7.5kW+) + gear reducer



(2) Precision Processing Equipment

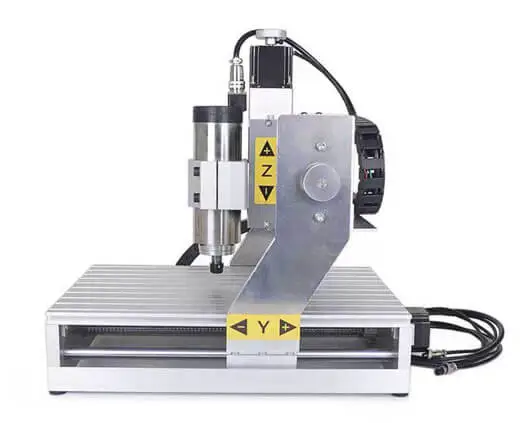

   • CNC Wood Engraving Machines





      ► Critical Need: Micron-level positioning accuracy

      ► Mandatory Motors:

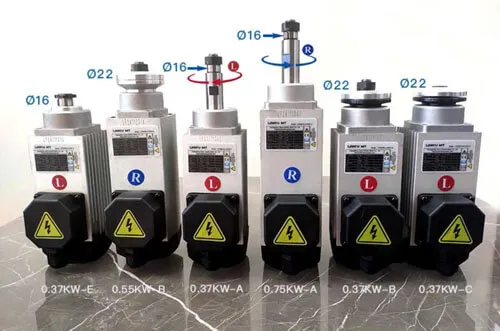

        ♦ Spindle: High-speed water-cooled servo motor (3000-24,000 RPM)

        ♦ Feed axis: Closed-loop stepper or AC servo motor (e.g., Yaskawa Σ-7 series)



   • Sanding/Polishing Machines





      ► Key Metric: Speed stability

      ► Optimal Solutions:

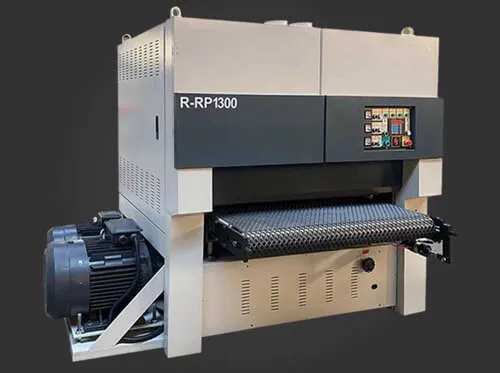

        ♦ Wide belt sander: Electromagnetic speed-regulating motor (e.g., YCT series)

        ♦ Precision polisher: Permanent magnet synchronous motor (PMSM motors)



2. Critical Performance Parameter Calculations

(1) Power Estimation Formula



P=T×n/9550


(T: Torque in Nm; n: Speed in RPM)



Example: Spindle requiring 30Nm@6000 RPM → P=18.8kW (select 22kW for redundancy).



(2) Starting Torque Verification

   • Typical Starting Factors:

      ► Band saws/planers: 2.5–3× rated torque

      ► CNC equipment: 1.5× (servo systems allow direct starts)



3. Environmental Adaptability Design



Challenge	Motor Selection Strategy	Example Models
Wood dust	TEFC enclosure (IP54+)	Siemens 1LE0 series
Humid workshops	Moisture-resistant insulation (Class F/H)	WEG W22 waterproof motor
8-hour continuous operation	S1 duty cycle	ABB M3BP series
Frequent VFD speed adjustment	Dedicated inverter motor (forced cooling)	Toshiba VFAS series



4. Energy Efficiency vs. Cost Balance

   • Prioritize Efficiency:



      ► IE4 super-premium motors (save ~30% in annual electricity costs vs. motor price).



   • Cost-Sensitive Applications:



      ► Intermittent-duty machines: IE2 motor + mechanical clutch.



   • Smart Upgrades:



      ► Add IoT modules (e.g., Siemens SIMOTICS IQ) for real-time bearing wear alerts.



5. Typical Configuration Comparisons



Machine Type	Traditional Setup	Upgraded Solution	Cost Difference	Efficiency Gain
Auto-feed saw	Y-series motor + gearbox	PMSM + direct drive	+40%	25%
Wood lathe	Electromagnetic speed-regulating motor	Servo spindle + VFD feed	+120%	40%
Sanding line	Multiple induction motors	Central drive + PMSM	-15%*	30%
(Long-term total cost reduction)*

6. Maintenance Tips

   • Bearing Lubrication: Use sealed bearings + lithium grease (e.g., SKF E2) in dusty environments.

   • Overheat Protection: Install PTC thermistor + circuit breaker dual safeguards.

   • Vibration Control: Fit elastic mounts + coupling dampers to protect machining accuracy.



Final Selection Process:

(1). Define cutting force demands → Calculate power/torque.

(2). Analyze duty cycle (S1/S3/S6).

(3). Assess environmental risks (dust/humidity/temperature).

(4). Choose control method (VFD/servo/direct start).

(5). Verify supplier qualifications (request woodworking-specific motor test reports).





For customized motor sizing, provide:



   • Material hardness (e.g., oak/pine)

   • Maximum cutting thickness

   • Daily operating hours



Please share your electric motor request with us. We can refine the selection further based on your inputs.
