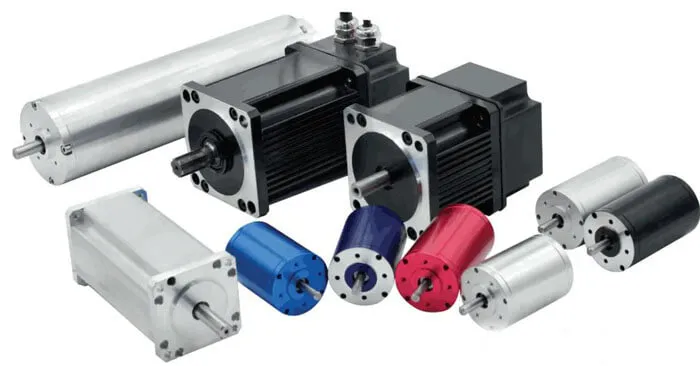

Servo motors, as the core power components in modern industrial automation and precision control systems, directly determine the efficiency and accuracy of entire systems. Among the many factors affecting servo motor performance, the brake plays a critical role—far beyond being just a simple stopping device. It serves as a protective mechanism, efficiency booster, and safety safeguard.
Before delving into technical details, we must understand the brake's role in servo motor systems. At its core, a brake stops or holds the motor's rotation, preventing unintended movement during power loss or malfunctions. However, its functions extend much further:
Safety Assurance
In vertical-axis applications, servo motors must counteract gravity to hold loads. A sudden power loss could cause uncontrolled drops, leading to equipment damage or even injuries. Brakes prevent such hazards.
Positioning Precision
High-precision motion control requires rapid, accurate stops. Brakes work with servo drives to ensure exact positioning.
Load Holding
In applications requiring prolonged load retention, brakes eliminate the need for continuous power consumption, reducing energy use and motor wear.
Reverse Rotation Prevention
In wind turbines, for example, brakes prevent motors from being back-driven by loads when wind force is insufficient.
Assisted Braking
During emergency stops, brakes supplement servo drives to minimize shock and vibration, extending equipment lifespan.
Clearly, servo motor brakes are not mere "stopping devices" but integrated systems for safety, precision, and energy efficiency.
Though brake designs vary, most share these key components:
1. Armature
A movable soft-iron ring or disc that engages with friction surfaces when activated.
2. Coil
Generates electromagnetic force to disengage the brake when powered.
3. Brake Disc/Drum
A wear-resistant surface that interfaces with friction linings for braking.
4. Friction Lining
High-friction material attached to the armature; critical for braking performance.
5. Spring
Applies force to engage the brake when power is off; stiffness affects response time.
6. Mounting Bracket
Secures the brake to the motor with precise alignment.
Understanding these components is essential to grasp brake operation.
Servo motor brakes rely on electromagnetic force controlling friction. A typical electromagnetic brake operates as follows:
Power-Off State (Braking)
No current → no magnetic field → spring forces the armature against the disc/drum → friction stops the motor.
Power-On State (Release)
Current energizes the coil → magnetic field pulls the armature away → friction disengages → motor rotates freely.
Power Interruption (Braking Process)
When power cuts, the spring instantly re-engages friction for a controlled stop.
This synergy between electromagnetism and friction enables precise motor control.

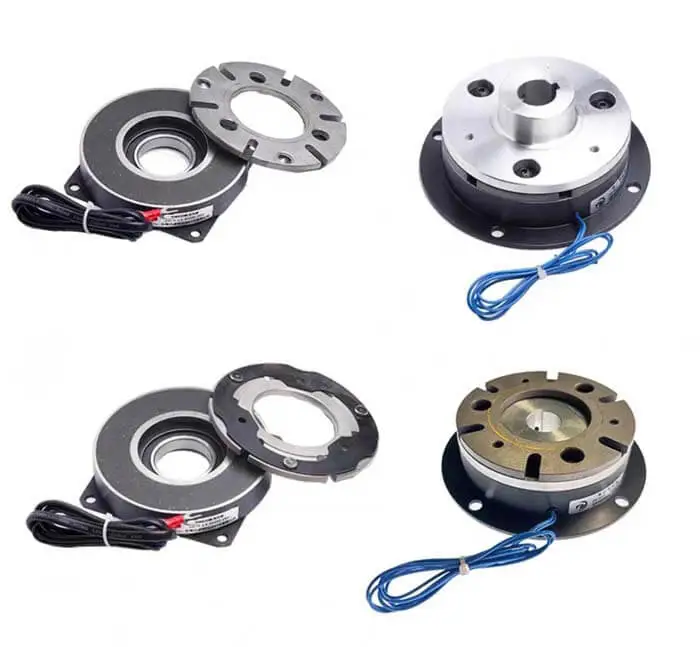

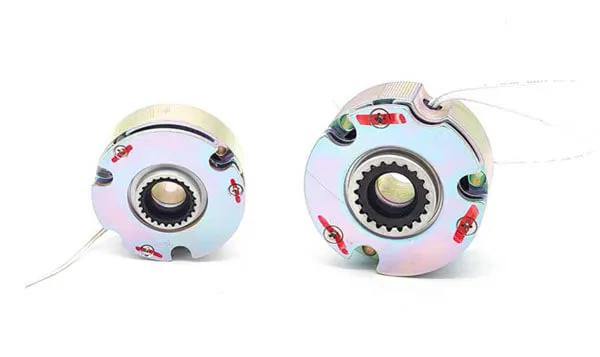

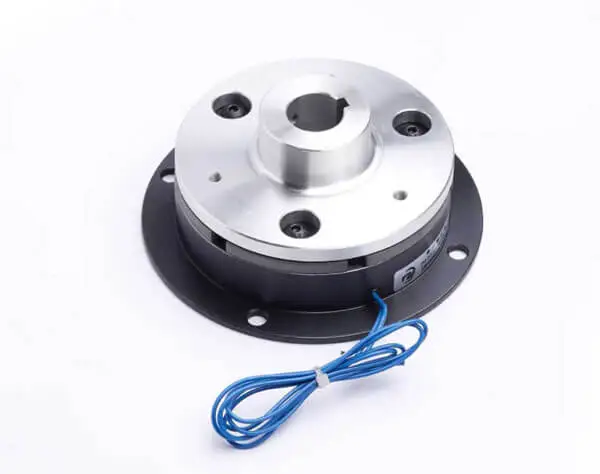

1. Electromagnetic Brakes
• Spring-Applied (Fail-Safe): Engages when power fails (common in servos).
• Power-Applied: Engages when powered (less common).
• Pros: Simple, reliable, fast response.
2. Permanent Magnet Brakes
• Use permanent magnets instead of coils.
• Pros: No external power needed; ideal for battery systems.
3. Hysteresis Brakes
• Use magnetic hysteresis for smooth, wear-free braking.
• Pros: Silent, precise; suited for high-end applications.
4. Hydraulic Brakes
• Use fluid pressure for high torque.
• Pros: Heavy-load capable; Cons: Complex maintenance.
Selection depends on load, precision, safety, and environmental factors.
Servo brakes are ubiquitous in:
• Robotics (joint control)
• CNC Machines (tool positioning)
• Elevators (safety backup)
• Wind Turbines (anti-reverse protection)
• Medical Devices (precision motion)
As automation advances, their role expands further.
• Monitor friction lining wear.
• Keep brake discs/drums clean (free of oil/debris).
• Check coil insulation to prevent shorts.
• Lubricate moving parts periodically.
• Avoid overloading beyond rated capacity.
Proper care maximizes brake life and performance.
Servo motor brakes are unsung heroes in motion control. By understanding their design, physics, and applications, engineers can optimize system safety, efficiency, and reliability—unlocking the full potential of servo-driven automation.
Master the brake, and you master motion.
