In modern automation and smart manufacturing, servo motor systems are critical drive components whose performance directly impacts equipment precision, response speed, and stability. However, many engineers encounter insufficient bandwidth during servo system design and tuning. Low bandwidth limits dynamic performance, leading to reduced accuracy, delayed response, and even instability.
Before diving into solutions, we must first grasp what servo system bandwidth means.
• Definition: Bandwidth refers to the frequency range within which the system can accurately track input signals.
• Impact: Higher bandwidth = better tracking of rapid command changes = improved dynamic performance.
• Goal: Maximizing bandwidth is key to achieving high-speed, high-precision motion control.
♦ Poor Controller Design
Low gains or oversimplified control algorithms restrict bandwidth.
♦ Servo Motor Limitations
Inductance, resistance, and inertia (e.g., high rotor inertia slows response).
♦ Mechanical Load Issues
Friction, backlash, and compliance in the transmission system degrade responsiveness.
♦ Feedback Device Bottlenecks
Low-resolution encoders or slow feedback loops limit achievable bandwidth.
① Upgrade Your Control Algorithm
Replace basic PID with adaptive control, fuzzy logic, or model predictive control (MPC).
Self-tuning algorithms maintain high bandwidth across varying conditions.
② Fine-Tune Controller Gains
Increase proportional (P) and derivative (D) gains to improve transient response.
But: Avoid excessive gains → instability (use frequency-domain analysis for optimization).

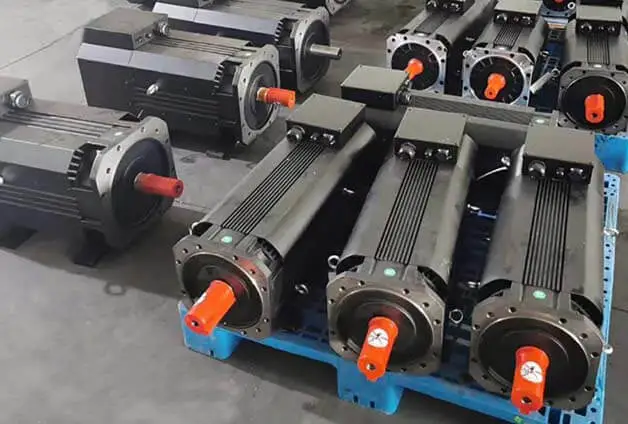

③ Swap in a High-Performance Servo Motor
Choose motors with:
• Low inertia → Faster acceleration
• High torque density → Better dynamic response
• Low electrical time constant (L/R) → Reduced delay
④ Optimize Mechanical Transmission
Replace belts/gears with direct-drive or stiff couplings.
Use preloaded ball screws and linear guides to minimize backlash.
Reduce moving mass → Lower reflected inertia.
⑤ Deploy High-Speed Feedback Devices
Upgrade to 23-bit+ encoders or interferometric linear scales.
Shorten feedback loop cycle time → Enables faster corrective actions.
|
Step |
Action |
Expected Bandwidth Gain |
|
1 |
Analyze current bandwidth via frequency sweep tests |
Baseline |
|
2 |
Tune controller gains (e.g., using Bode plots) |
+20-50% |
|
3 |
Replace mechanical linkages with rigid connections |
+30% |
|
4 |
Install high-resolution feedback |
+15-25% |
|
5 |
Switch to low-inertia servo motor |
+40-70% |
✅ Real-Time Monitoring: Use oscilloscopes to detect phase lag early.
✅ Thermal Management: Overheating coils increase resistance → bandwidth drops.
✅ Vibration Analysis: Mechanical resonances cap usable bandwidth – dampen them!
Bandwidth constraints in servo systems aren’t fate—they’re engineering puzzles. By algorithm upgrades, precision tuning, hardware swaps, and mechanical optimizations, you can break through performance ceilings.
Remember: Every 10% bandwidth increase can mean faster cycles, tighter tolerances, and higher throughput. Now go unleash your servo’s full potential! ⚡
