The 80mm Spindle Motor: Precision Powerhouse or Costly Trap? Your Buyer’s Guide

Why this compact workhorse defines your machining quality – and how to avoid counterfeit disasters.





Walk into any workshop crafting precision parts, and you’ll likely find an 80mm spindle motor humming at the heart of CNC routers, engravers, or dental mills. But beneath its unassuming size lies a critical choice: invest wisely for flawless results, or gamble on cheap imitations that cripple productivity. Let’s break it down.



Anatomy of Performance: What Makes an 80mm Spindle Tick



1. Integrated Direct-Drive Design



No belts, no gears. Motor + spindle = zero transmission loss and reduced vibration.

Critical for micrometric precision (runout tolerance: 0.003–0.005mm).



2. Bearing System: The Speed Enabler



Premium models use P4-grade angular contact bearings (ceramic balls, pre-loaded).

Handles 24,000 RPM sustainably. Cheap substitutes fail catastrophically at high speeds.



3. Cooling: Silent Guardian



Water-cooled: Essential for 24/7 jobs (e.g., metal cutting). Stable temps = consistent cuts.

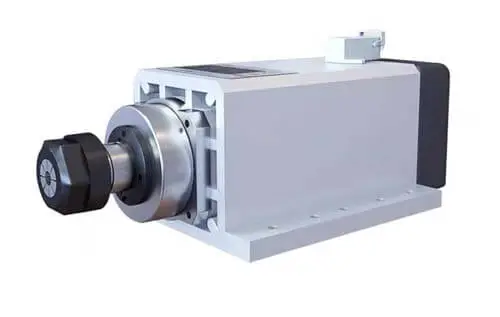

Air-cooled: Simpler setup for lighter tasks (wood/acrylic), but throttles sustained power.



 Key Specs That Matter



Parameter	Standard Range	Real-World Impact
Power	1.2–2.2 kW	2.2 kW needed for steel/aluminum deep milling
Speed	0–24,000 RPM	18K+ RPM for fine engraving/polishing
Collet	ER11 (max Ø6mm)	ER16 (Ø3.175–10mm) offers tooling flexibility
Voltage	220V AC	Verify phase compatibility (single/3-phase)



Top Applications: Where 80mm Spindles Dominate



High-Speed Engraving: Crystal logos, circuit boards, jewelry (24K RPM + 0.003mm runout).





Precision Milling: Aluminum molds, titanium medical parts (2.2 kW PMSM motor torque for chip clearance).

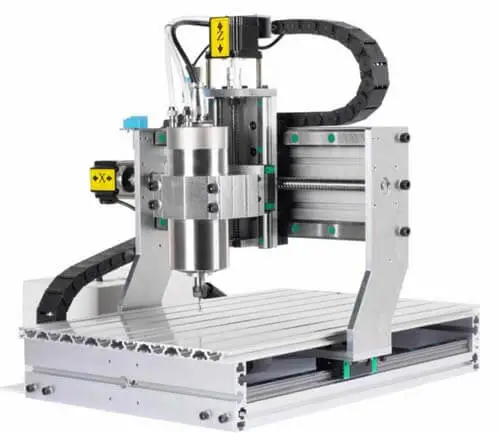

Desktop CNC Machines: Space-saving power for makers/prototyping labs.



The Dark Side: 3 Counterfeit Traps Destroying Workshops



1. Material Fraud



Copper vs. Aluminum Windings: Al motors overheat, cutting lifespan by 70%.

Fake Bearings: Generic steel balls labeled “P4” – fails above 12K RPM. *Real P4 bearings cost >$150/set.*



2. Ghost Factories, Zero QC



Unpolished spindle seats → radial play >0.01mm (scrapped workpieces).

Rewrapped used motors sold as “new” – fails within weeks.



3. Warranty Scams



“1-year guarantee” voids the moment you spin the spindle. No service network.



✅ Smart Buyer Checklist

1. Demand Test Reports: Valid runout ≤0.005mm (ISO 1940 balance cert).

2. Verify Internals:

  • Copper windings (scrape a wire end – copper = reddish, aluminum = silvery).

  • Branded bearings (NSK, SKF, or FAG stamps).

3. Trusted Brands:  ISO9001-certified suppliers.

4. Price Reality: $130–$350 (water-cooled 2.2kW). $70 “deals” are landfill.



 Pro Maintenance Rules

  • Startup/Shutdown:

      ♦ ALWAYS start coolant flow BEFORE power. Stop coolant LAST.

      ♦ Prevents thermal shock & bearing corrosion.

  • Storage: Blow dry coolant channels, coat shaft with anti-rust oil.

  • Repairs: Never DIY bearing swaps – misalignment shreds stators.



 Future Trends: Where 80mm Tech is Headed



  ► Ultra-High Speed: 60,000 RPM spindles (ceramic bearings + magnetic cooling).

  ► Smart Spindles: Built-in vibration/temp sensors for predictive maintenance.

  ► Hybrid Cooling: Phase-change systems for compact high-power units.



The Bottom Line

An 80mm spindle isn’t a “part” – it’s the pulse of your precision. Choosing a $930 reliable water-cooled spindle motor over a $600 counterfeit saves:

   → $2,000+ in scrapped titanium/aluminum work.

   → 50+ hours of annual downtime.

   → Your reputation for flawless finishes.



In machining, the cheapest spindle is usually the most expensive. Invest once, dominate daily.
