In the vast field of industrial production driven by high-voltage motors, the star connection (Y-connection) has always played a quiet yet crucial role. While seemingly simple, it holds the power to extend motor lifespan and reduce operational costs significantly.

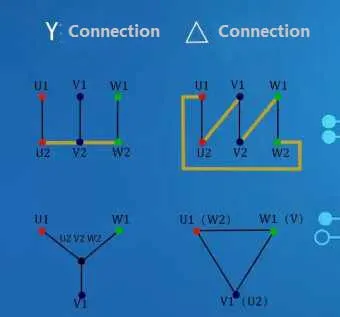

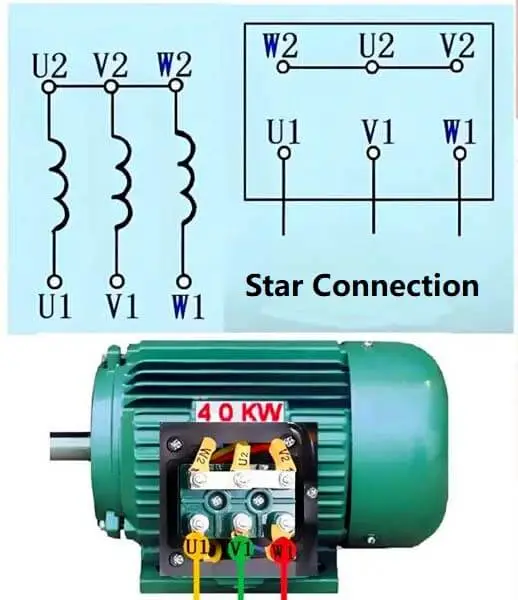

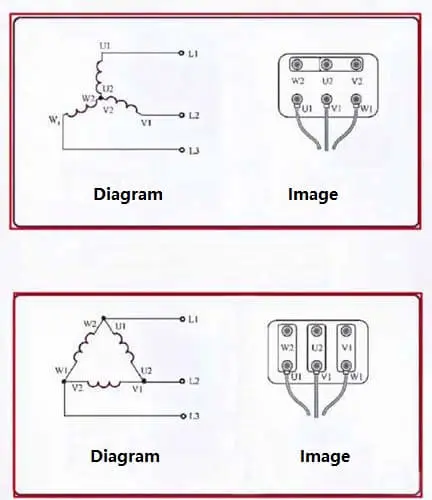

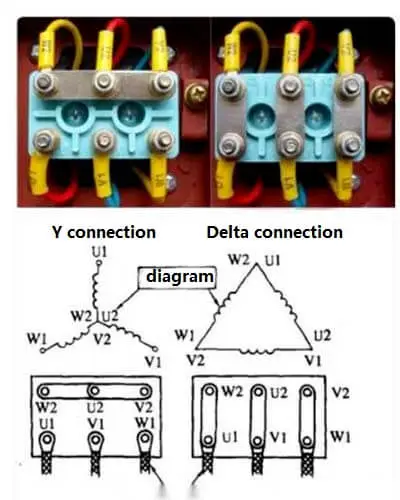

Before diving into its advantages, let’s clarify the basics. In a three-phase AC power system, the star connection is a common wiring method where the ends of three windings are joined to form a neutral point, while the starting terminals serve as the three-phase output.
• Line Voltage vs. Phase Voltage:
♦ Line Voltage (V_L) is the voltage between any two output phases.
♦ Phase Voltage (V_P) is the voltage across each winding.
♦ In star connection: V_L = √3 × V_P
• Line Current vs. Phase Current:
♦ Line Current (I_L) = Phase Current (I_P)
• Neutral Point:
♦ Can be grounded or floating, depending on safety and application requirements.
Star connection extends high-voltage motor lifespan by reducing voltage stress on windings, slowing insulation aging. Here’s how:
① Lower Phase Voltage = Less Insulation Stress
• Since V_P = V_L / √3, each winding endures lower voltage stress, delaying insulation degradation.
• In high-voltage motors, insulation breakdown is a leading failure cause—reducing voltage stress directly prolongs motor life.
② Better Surge Voltage Protection
• Star connection’s higher impedance helps absorb voltage surges (e.g., from lightning or switching).
• This protects windings from sudden spikes, crucial in unstable power grids or lightning-prone areas.
③ Improved Voltage Balance
• A grounded neutral stabilizes phase voltages, minimizing negative-sequence currents (which cause extra heating).
• Balanced voltages = lower motor temperature = longer lifespan.
④ Reduced Winding Temperature
• Lower voltage → lower current → less heat generation.
• According to the "10°C Rule", every 10°C rise cuts insulation life in half.
• Star connection keeps motors cooler, dramatically extending service life.
Beyond direct lifespan benefits, star connection enables star-delta starting, a soft-start method for high-voltage motors:
① Lower Starting Current (1/3 of Full Load)
• At startup, motors draw 5-7× rated current, stressing the grid and windings.
• Star-delta starting cuts inrush current to 1/3, reducing thermal stress.
② Reduced Mechanical Shock
• Lower starting torque = gentler acceleration, protecting gears, belts, and couplings.
Best Applications:
✔ High-voltage, high-power motors
✔ Motors requiring soft-start (star-delta)
✔ Unstable grids or lightning-prone areas
✔ Critical applications demanding long motor life
Key Considerations:
⚠ Ensure supply voltage matches motor rating.
⚠ Optimize star-delta switching time to avoid current spikes.
⚠ Regularly check neutral grounding.
⚠ Select proper insulation class based on load/environment.
Star connection isn’t a cure-all, but it’s a game-changer for high-voltage motors. By reducing voltage stress, suppressing surges, balancing phases, and lowering temperatures, it triples lifespan (a relative benchmark—actual gains depend on design and usage).
The takeaway? Smarter wiring = longer-lasting motors, lower costs, and fewer breakdowns.
