Product Description
Features:
|
Input Voltage (V) |
12V or 24V DC |
|||
|
Gear Ratio |
18:1 |
28:1 |
||
|
Load (N) |
2000 |
2500 |
4000 |
5000 |
|
Static Load (N) |
2300 |
|||
|
Speed (mm/s) |
10 |
8 |
3 |
5.5 |
|
Stroke (mm) |
50-900 |
|||
|
Temperature |
-40 to 70 ℃ |
|||
|
Duty Cycle |
25% (function 2.5minute in 10minute) |
|||
|
Limit Switch |
Built-in |
|||
|
IP |
IP66 |
|||
|
Sensor Option |
Potentiometer 10K/10round or Hall sensor |
|||
|
Screw Option |
Acme and Ball |
|||
|
Overload Clutch Protection |
Yes |
|||
Typical model data
|
Model |
Voltage (V) |
Push Load (N) |
Pull Load (N) |
No- Load Speed (mm/s) |
Load Speed (mm/s) |
Max Load Current (A) |
Static Load (N) |
Duty Cycle (%) |
|
DLA2-12-3 |
12 |
4000 |
3000 |
3.8 |
3 |
12 |
4500 |
20 |
|
DLA2-12-6 |
12 |
5000 |
4000 |
7 |
6 |
12 |
5500 |
20 |
|
DLA2-12-8 |
12 |
2500 |
2000 |
11 |
8 |
11.5 |
3000 |
20 |
|
DLA2-12-10 |
12 |
2000 |
2000 |
15 |
10 |
12 |
2500 |
20 |
|
DLA2-12-19 |
12 |
1000 |
1000 |
28 |
19 |
12 |
1000 |
20 |
|
DLA2-12-9 |
12 |
3500 |
3000 |
12 |
9 |
10 |
3500 |
25 |

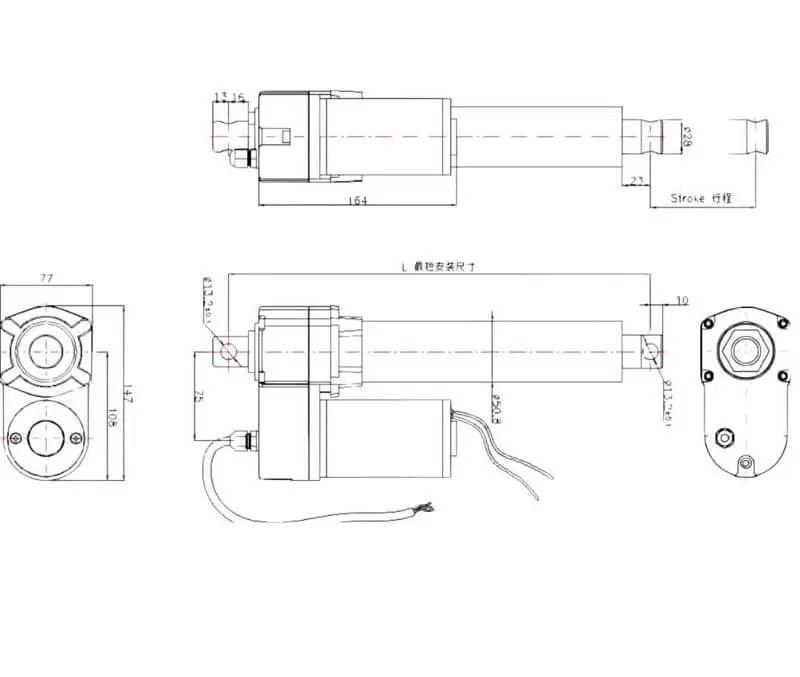

Size Drawing:
